Wheel-to-Hub Optimization
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Wheel-to-hub optimization is important. Clearance between the wheel and hub can be used to offset or neutralize the Road Force ® or run-out of the wheel and tire assembly. For every 0.001 in of wheel-to-hub clearance, the Road Force ® can be affected between 1 and 3 pounds depending on the tire stiffness.
NOTE:

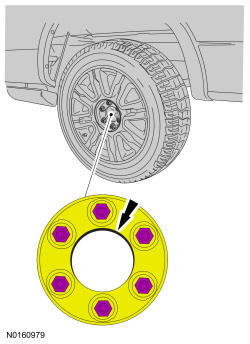

The example below illustrates how the clearance between the wheel and the hub can be used to offset the high spot of radial run-out or Road Force ®. Following the procedure will ensure the best optimization.
- 1.
Position the wheel and tire assembly on the vehicle so that the high spot location is at the 6 o'clock position and install the wheel nuts by hand until snug.
- 2.NOTE: Do not allow the full weight of the vehicle to rest on the tires while tightening the wheel nuts.
Lower the vehicle until the tires make contact with the ground, slightly loading the suspension. Tighten the wheel nuts as described in Wheel and Tire .
