Battery Tray

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The washer reservoir is integrated with the battery tray and cannot be serviced separately.

1.

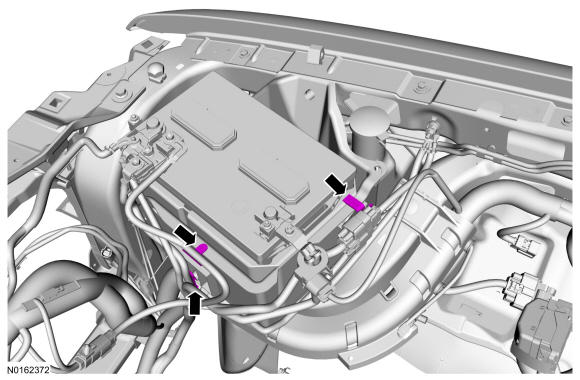

Disconnect the 3 wire harness retainers from the battery tray.

GFD136895

Courtesy of FORD MOTOR COMPANY

2.

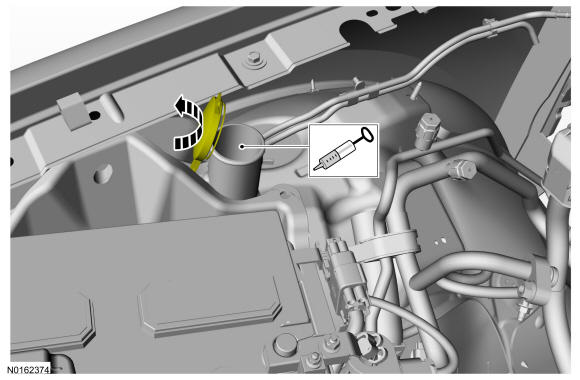

Drain the washer reservoir.

GFD136896

Courtesy of FORD MOTOR COMPANY

3.

Remove the battery. Refer to Battery .

4.

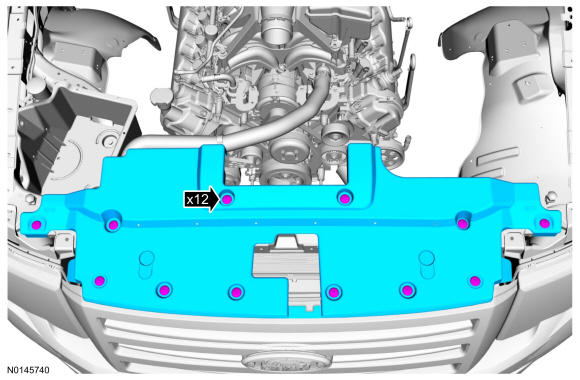

Remove the 12 upper air deflector pushpins and the upper air deflector.

GFD136897

Courtesy of FORD MOTOR COMPANY

5.

Drain the engine cooling system. Refer to Engine Cooling .

6.

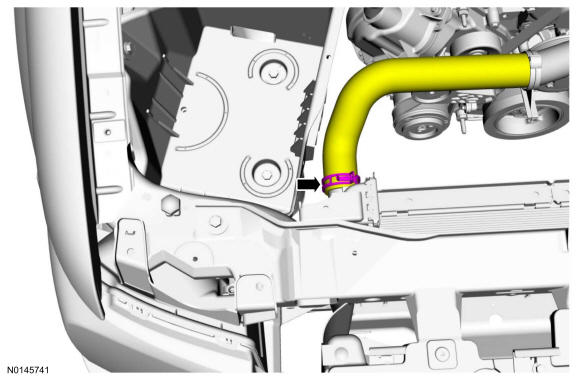

Release the clamp and disconnect the upper radiator hose from the radiator.

GFD136898

Courtesy of FORD MOTOR COMPANY

7.
- 1.

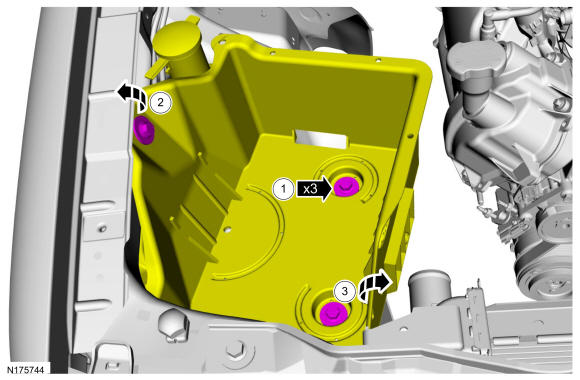

  Remove the 3 bolts.
  - To install, tighten to 15 Nm (133 lb-in).
- 2.

  Position the battery tray above the Right Hand (RH) fender inner edge.
- 3.

  Raise the front of the battery tray above the radiator upper hose connection.

GFD136899

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Be prepared to collect escaping fluid.
- 1.

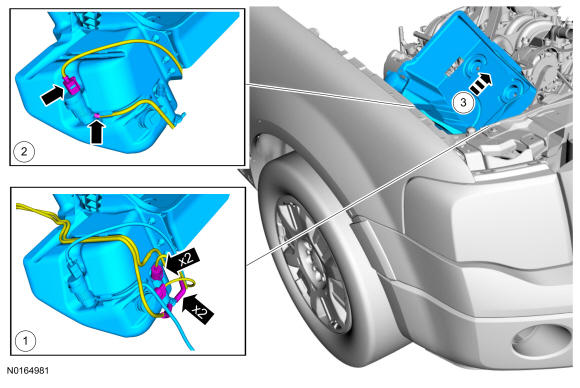

  Disconnect the electrical connector and the 2 washer hoses from the windshield washer pump. Disconnect the washer fluid level switch electrical connector.
- 2.

  If equipped, disconnect the electrical connector and the washer hose from the headlamp washer pump.
- 3.

  Remove the battery tray.

GFD136900

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Do not operate the washer pump prior to filling the windshield washer reservoir. Failure to follow this instruction may result in premature pump failure.

To install, reverse the removal procedure.
