Battery Current Sensor: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

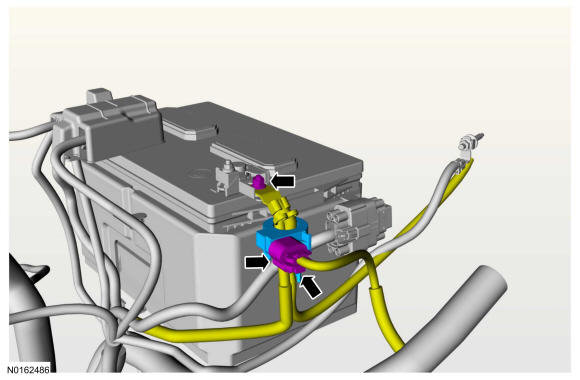

Remove the nut and position the negative battery cable terminal aside, disconnect the battery current sensor electrical connector and the battery current sensor retainer from the battery cable.
- To install, tighten nut to 9 Nm (80 lb-in).

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Note the orientation and position of the battery current sensor tape tab.

Index-mark the battery cable at the battery current sensor. Remove and discard the tape securing the battery current sensor to the battery cable and remove the battery current sensor.
