Rear Ride Height Measurement
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

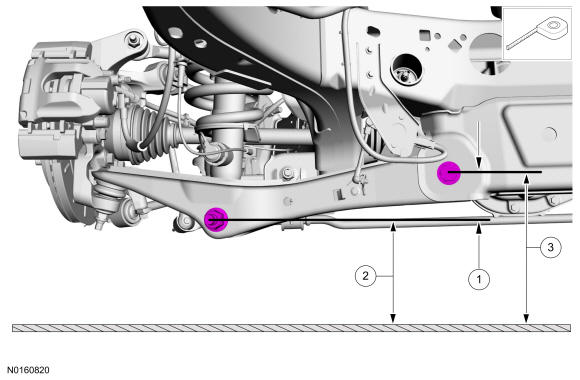

| Item | Description |
|---|---|
| 1 | Ride height = 3 - 2 |
| 2 | Measurement 2 |
| 3 | Measurement 3 |
NOTE:
Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
- 1.
Measure the distance between the flat level surface and the center of the lower arm rearward bolt (measurement 3).
- 2.
Measure the distance between the flat level surface and the center of the shock absorber lower bolt (rearward side) (measurement 2).
- 3.
Subtract measurement 2 from measurement 3 to obtain the rear ride height.- For additional information, refer to Specifications .
