Front Ride Height Measurement
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

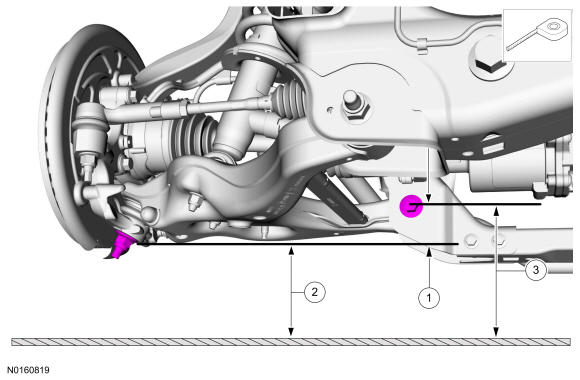

| Item | Description |
|---|---|
| 1 | Ride height = 3 - 2 |
| 2 | Measurement 2 |
| 3 | Measurement 3 |
NOTE:
Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.
- 1.
Position a suitable surface gauge (such as Starrett 57D Surface Gauge), on a flat, level surface and adjust the gauge's arm until the scriber point is located in the center of the lower arm rearward bolt.- Lock the surface gauge in this position.
- 2.
With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 3).
- 3.
Position the surface gauge on the same flat, level surface as used in Step 1, adjust the gauge's arm until the scriber point is located on the lowest point on the wheel knuckle.- Lock the surface gauge in this position.
- 4.
With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2).
- 5.
Subtract measurement 2 from measurement 3 to obtain the front ride height.- For additional information, refer to Specifications .
