Ball Joint Inspection
- 1.
Prior to inspecting the ball joints for wear, inspect the wheel bearings. Refer to Noise, Vibration and Harshness .
- 2.NOTE: In order to obtain accurate measurements, the suspension must be in full rebound with the weight of the vehicle supported by the frame.
Raise and support the vehicle by the frame to allow the wheels to hang in the rebound position.
- 3.
Inspect the ball joint and ball joint boot for damage.- If the ball joint or ball joint boot is damaged, install a new ball joint as necessary. Refer to Front Suspension Rear Wheel Drive (RWD) for Rear Wheel Drive (RWD) vehicles and Front Suspension Four Wheel Drive (4WD) for Four-Wheel Drive (4WD) vehicles.
- 4.NOTE: Do not use any tools or equipment to move the wheel and tire assembly or suspension components while checking for relative movement. Suspension damage may occur. The use of tools or equipment will also create relative movement that may not exist when using hand force. Relative movement must be measured using hand force only.NOTE: The weight of the wheel and tire assembly must be overcome to obtain an accurate measurement on the dial indicator.
Inspect the ball joint for relative movement by alternately pulling downward and pushing upward on the wheel and tire assembly by hand. Note any relative vertical movement between the wheel knuckle and lower arm at the lower ball joint.
- If relative movement is not felt or seen, the ball joint is OK. Do not install a new ball joint.
- If relative movement is found, continue with Step 5.
- 5.NOTE: In order to obtain an accurate measurement, the dial indicator should be aligned as close as possible with the vertical axis (center line) of the ball joint.

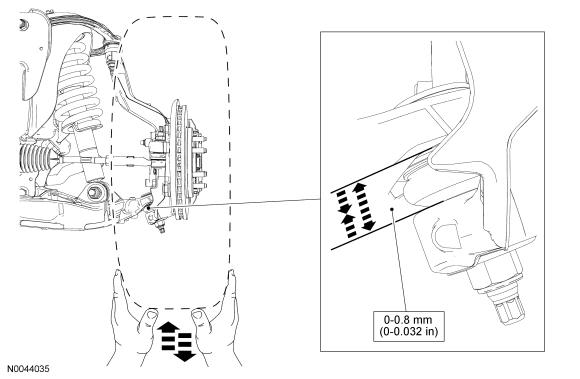

To measure ball joint deflection, attach a suitable dial indicator with a flexible arm between the lower control arm and the wheel knuckle or ball joint stud.
- 6.
Measure the ball joint deflection while an assistant pushes up and pulls down on the wheel and tire assembly by hand.- If the deflection exceeds the specification, a new ball joint must be installed. Refer to Front Suspension Rear Wheel Drive (RWD) for RWD vehicles and Front Suspension Four Wheel Drive (4WD) for 4WD vehicles.
- If the deflection meets the specification, continue with the procedure.
- 7.NOTE: Do not use any tools or equipment to move the wheel and tire assembly or suspension components while checking for relative movement. Suspension damage may occur. The use of tools or equipment will also create relative movement that may not exist when using hand force. Relative movement must be measured using hand force only.
Inspect the ball joint for relative movement by alternately pulling downward and pushing upward on the upper control arm by hand. Note any relative vertical movement between the wheel knuckle and upper arm at the upper ball joint.
- If relative movement is not felt or seen, the ball joint is OK. Do not install a new ball joint.
- If relative movement is found, continue with Step 8.
- 8.NOTE: In order to obtain an accurate measurement, the dial indicator should be aligned as close as possible with the vertical axis of the ball joint.

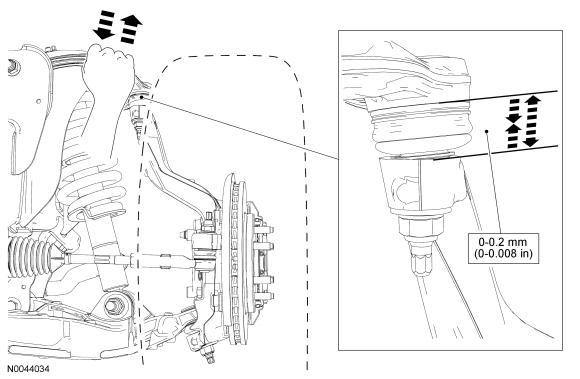

To measure ball joint deflection, attach a suitable dial indicator with a flexible arm between the upper control arm and the wheel knuckle or ball joint stud.
- 9.
Measure the ball joint deflection while an assistant pushes up and then pulls down on the upper control arm by hand.- If the deflection exceeds the specification, a new ball joint must be installed. For additional information, refer to Front Suspension Rear Wheel Drive (RWD) for RWD vehicles and Front Suspension Four Wheel Drive (4WD) for 4WD vehicles.
- If the deflection meets the specification, no further action is required.
