Jacking Points - Rear
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not use the differential housing as a lift point. Leaks or damage to the rear axle cover and adjoining differential housing surface may occur if a floor jack or any lifting device is allowed to contact the cover at any point where the cover joins the housing.

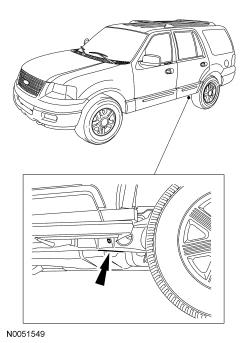

The rear jacking point is indicated by an arrow cutout in the frame, located in front of the rear tire and wheel.

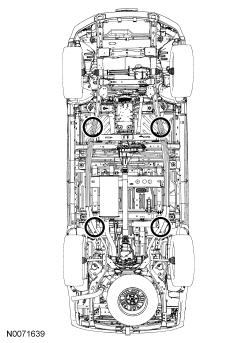

Lifting Points - Front and Rear
Locate the front hoist adapters and rear hoist adapters as indicated.
