Removal And Installation
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

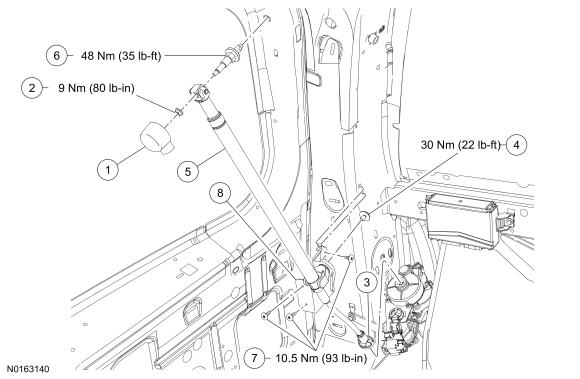

| Item | Part Number | Description |
|---|---|---|
| 1 | 410B00 | Power liftgate rod end cover |
| 2 | W520201 | Power liftgate rod-to-liftgate retaining nut |
| 3 | - | Power liftgate rod-to-motor retaining clip (part of the power liftgate rod assembly) |
| 4 | - | Power liftgate rod-to-bracket bolt |
| 5 | 404B45 | Power liftgate rod assembly |
| 6 | 404E48 | Power liftgate rod mounting stud |
| 7 | N807780 | Power liftgate rod bracket-to-pillar bolts (3 required) |
| 8 | - | Power liftgate rod bracket (part of power liftgate rod assembly) |
- 1.
Remove the LH quarter trim panel. For additional information, refer to Interior Trim and Ornamentation .
- 2.
Unclip the power liftgate rod from the motor assembly.- Squeeze the clip as shown to release and position upward on the rod assembly.
- 3.
Remove the cover and the power liftgate rod-to-liftgate retaining nut.- To install, apply threadlock to the threads of fastener and tighten to 11 Nm (97 lb-in).
- 4.
Remove the power liftgate rod-to-bracket bolt and the power liftgate rod assembly.- To install, tighten to 30 Nm (22 lb-ft).
- 5.
To install, reverse the removal procedure.- Initialize the power liftgate. For additional information, refer to Power Liftgate Initialization .
