Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the LH quarter trim panel. Refer to Interior Trim and Ornamentation .

  1. 2.

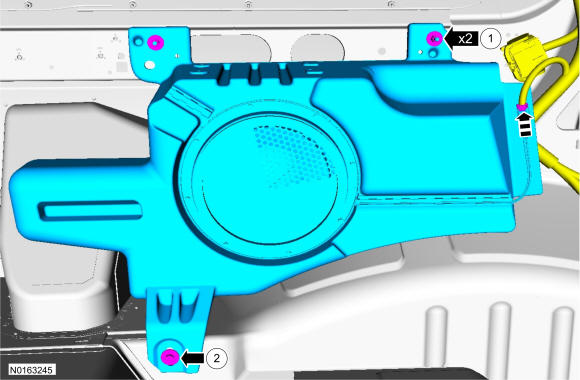

    Remove the 3 bolts, and the subwoofer speaker assembly and disconnect the electrical connector.

    1. 1.

      To install, tighten to 5 Nm (44 lb-in).

    1. 2.

      To install, tighten to 5 Nm (44 lb-in).
GFD136980Courtesy of FORD MOTOR COMPANY

  1. 3.

    To install, reverse the removal procedure.
