Removal And Installation
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

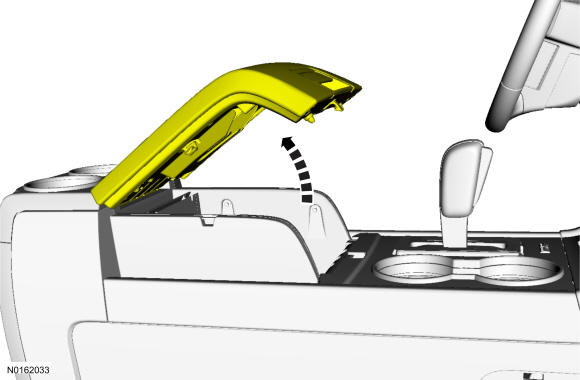

- 1.
Open the floor console.
 Courtesy of FORD MOTOR COMPANY
|

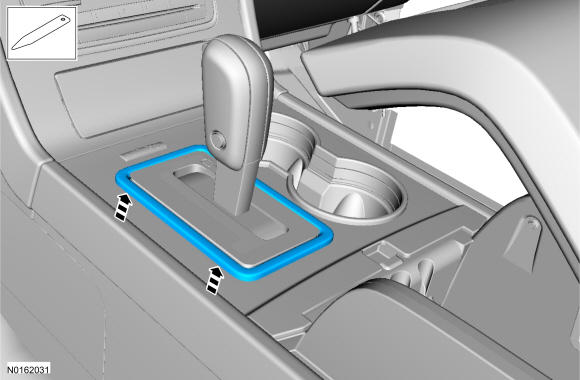

- 2.
Remove the selector lever trim bezel.
 Courtesy of FORD MOTOR COMPANY
|

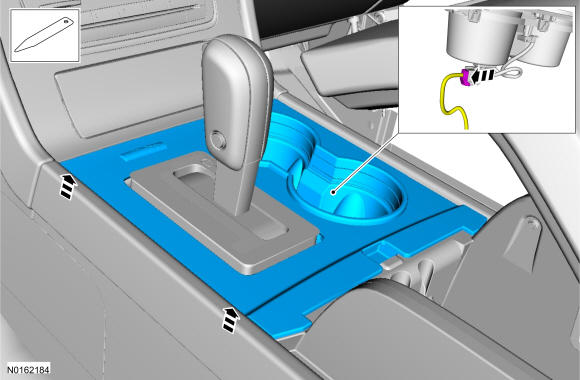

- 3.
Remove the front floor console finish panel.
- Disconnect the electrical connector(s).
 Courtesy of FORD MOTOR COMPANY
|

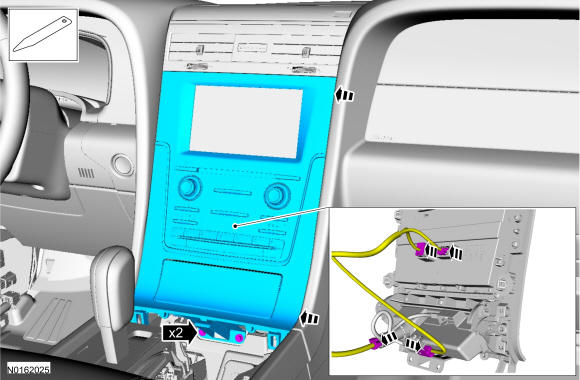

- 4.
Remove the two bolts and the FCIM.
- Disconnect the electrical connector(s).
- To install, tighten to 2.5 Nm (23 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 5.
To install, reverse the removal procedure.
