Airbag and Safety Belt Pretensioner SRS Components
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

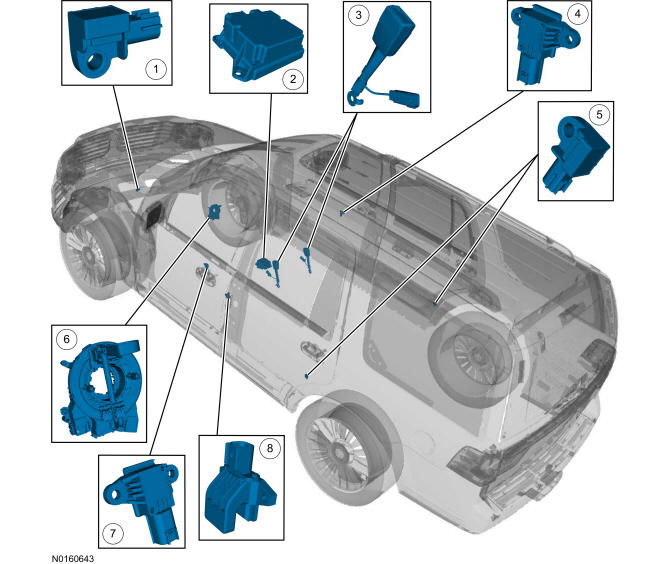

Airbag and Safety Belt Pretensioner SRS Components (Illustration 1 of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 14B006 14B006 | Front impact severity sensor |
| 2 | 14B321 14B321 | RCM |
| 3 | 610E15 610E15 (LH)/ 610E14 (RH) (LH)/ 610E14 (RH) | Safety belt buckle (includes buckle switch) |
| 4 | 14B345 14B345 | RH front door side impact sensor |
| 5 | 14B006 14B006 | C-pillar side impact sensor |
| 6 | 14A664 14A664 | Clockspring |
| 7 | 14B345 14B345 | LH front door side impact sensor |
| 8 | 14B416 14B416 | Driver seat position sensor |

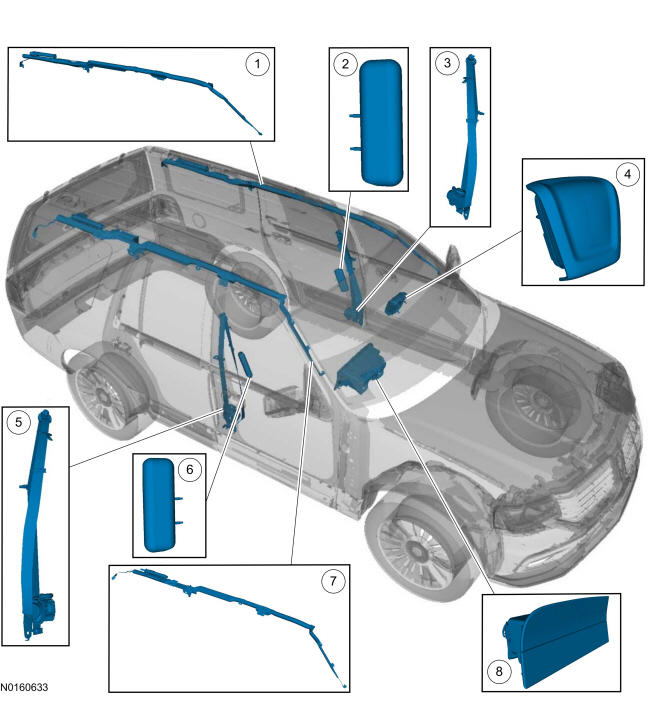

Air Bag and Safety Belt Pretensioner SRS Components (Illustration 2 of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 042D95 042D95 | LH side air curtain |
| 2 | 611D10 611D10 | LH side airbag |
| 3 | 611B09 611B09 | Driver safety belt retractor and pretensioner |
| 4 | 043B13 043B13 | Driver airbag |
| 5 | 611B08 611B08 | Passenger safety belt retractor and pretensioner |
| 6 | 611D10 611D10 | RH side airbag |
| 7 | 042D94 042D94 | RH side air curtain |
| 8 | 044A74 044A74 | Passenger airbag |
