Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the Left Hand(LH) turbocharger. Refer to Fuel Charging and Controls - Turbocharger, 3.5L GTDI .

2.

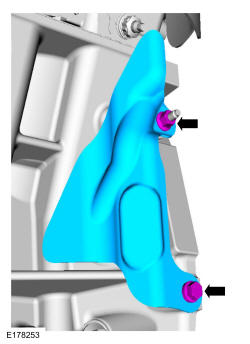

Remove the retainers and heat shield.

Courtesy of FORD MOTOR COMPANY

3.

Position aside the Crankshaft Position(CKP) sensor access plug.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Remove the bolt and the CKP sensor from the bell housing before disconnecting the electrical connector to prevent the CKP sensor from falling in the bell housing.
- 1.

  Remove the CKP sensor bolt.
- 2.

  Remove the CKP sensor then disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
