Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: High series Left Hand(LH) switch shown, others similar.

All Vehicles

1.

Remove the driver airbag module. Refer to Supplemental Restraint System

Expedition

2.

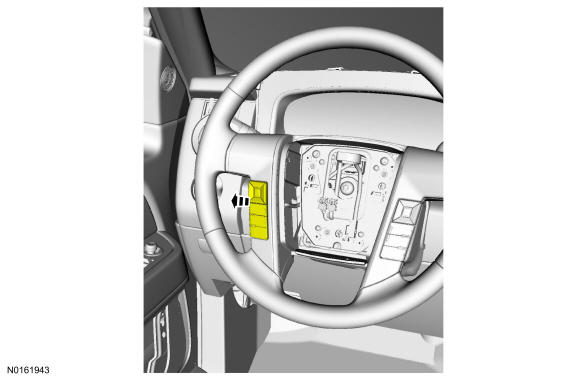

Using a suitable flat bladed tool, detach the steering wheel switch.

Courtesy of FORD MOTOR COMPANY

3.

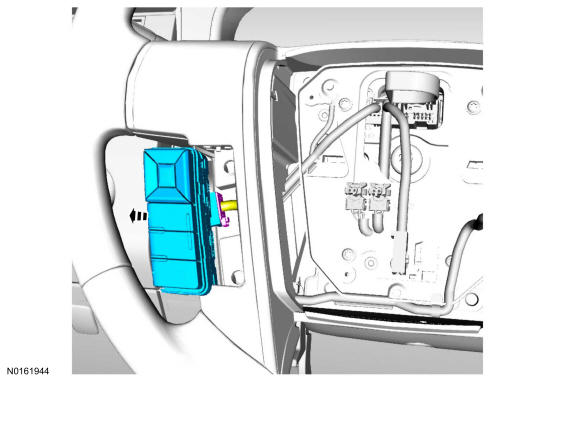

Disconnect the electrical connector and remove the steering wheel switch.

Courtesy of FORD MOTOR COMPANY

Navigator

4.

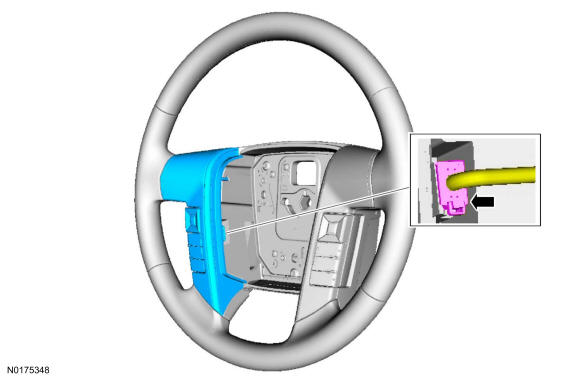

NOTE: Steering wheel shown removed for clarity.

Disconnect the electrical connector, remove the bezel and the steering wheel switch.

Courtesy of FORD MOTOR COMPANY

5.

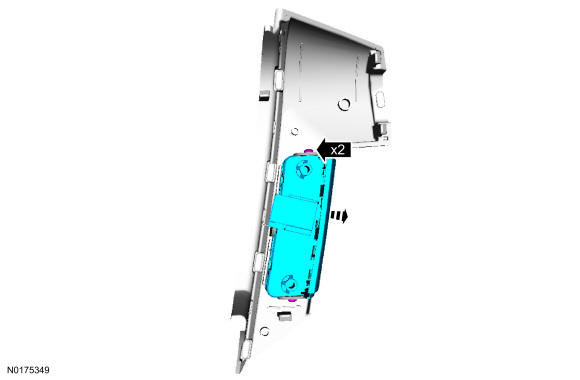

Remove the screws and the steering wheel switch from the bezel.

Courtesy of FORD MOTOR COMPANY

All Vehicles

6.

To install, reverse the removal procedure.
