Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The Programmable Module Installation(PMI) process must begin with the current Steering Column Control Module(SCCM) installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.

2.

Remove the clockspring. Refer to Supplemental Restraint System .

Vehicles with selector lever

3.

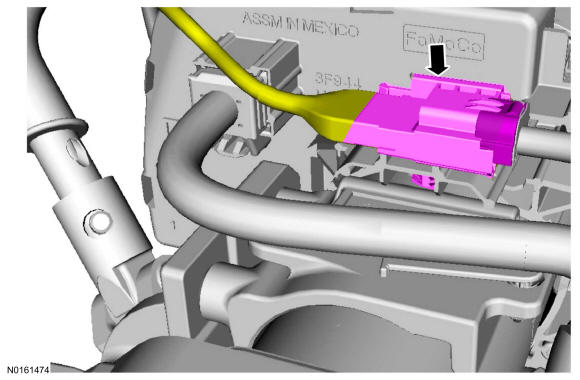

Disconnect the selector lever electrical connector from the SCCM.

Courtesy of FORD MOTOR COMPANY

All vehicles

4.

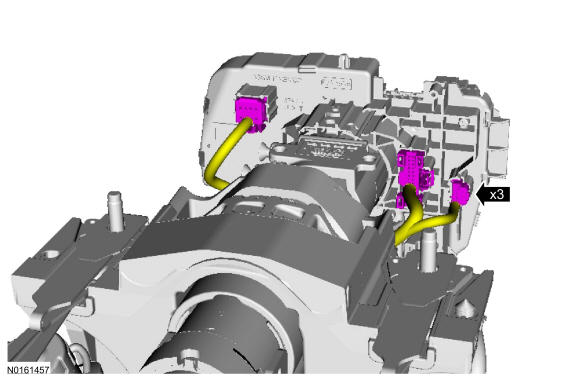

Disconnect the SCCM electrical connectors.

Courtesy of FORD MOTOR COMPANY

5.

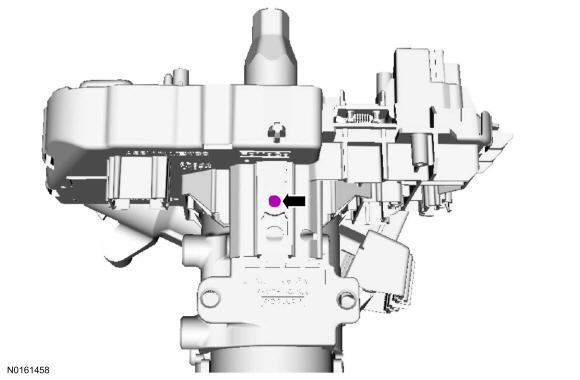

Remove the SCCM screw.

Courtesy of FORD MOTOR COMPANY

6.

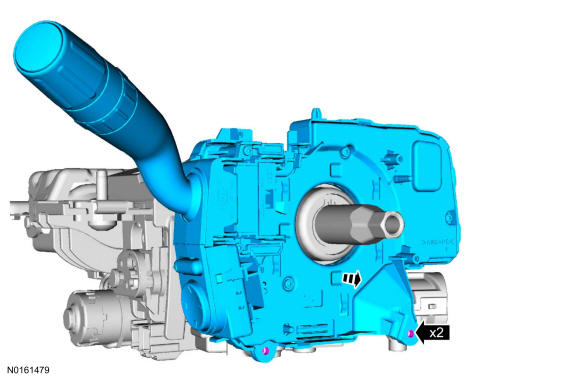

Remove the screws and the SCCM.

Courtesy of FORD MOTOR COMPANY

7.

To install, reverse the removal procedure.

8.

NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the SCCM following the on-screen instructions.
