Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. Refer to Wheels and Tires

2.

NOTE: Note the position of the components before removal.

NOTE: LH (left-hand) height sensor assembly shown, RH (right-hand) similar.

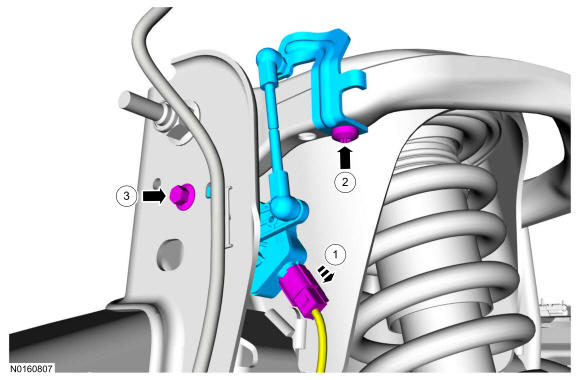

1. 1.

  Disconnect the height sensor electrical connector.
1. 2.

  Remove the screw and detach the height sensor arm from the upper control arm.
  - To install, tighten to 20 Nm (177 lb-In).
1. 3.

  Remove the height sensor bracket bolt and remove the height sensor.
  - To install, tighten to 20 Nm (177 lb-In).

Courtesy of FORD MOTOR COMPANY

Installation

NOTE: The linkage must be in a vertical position after installation. Failure to follow these instructions may result in component damage and/or failure.

1.

NOTE: The RH and LH height sensor assemblies cannot be used on opposite sides of the vehicle.

To install, reverse the removal procedure.

2.

Calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
