Oil Pan: Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

Apply a 5.5 mm (0.21 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the 2 engine front cover-to-cylinder block joint areas on the sealing surface of the oil pan.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Failure to use Motorcraft ® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The oil pan and the 4 specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.

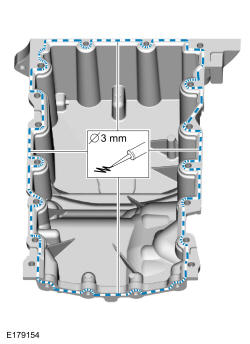

Apply a 3 mm (0.11 in) bead of Motorcraft ® High Performance Engine RTV Silicone on the inside edge of the oil pan to the sealing surface of the oil pan-to-engine block mating surface.

Courtesy of FORD MOTOR COMPANY

3.

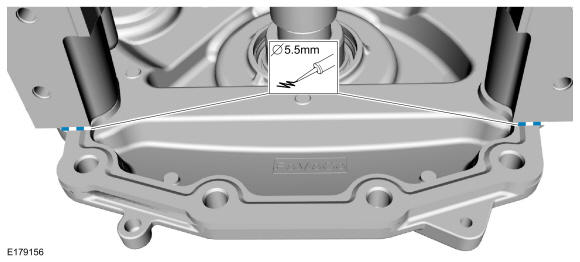

Apply a 5.5 mm (0.21 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

Courtesy of FORD MOTOR COMPANY

4.

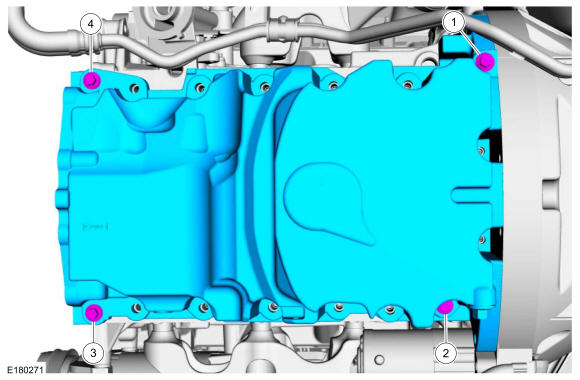

NOTE: The oil pan and the 4 specified bolts must be installed within 4 minutes of the start of sealant application.

NOTE: Keep the oil pan as close as possible to the transmission while installing, then slide forward towards the engine front cover to prevent wiping off of the sealant.

Install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

5.

Install the LH bell housing-to-oil pan bolts.

Courtesy of FORD MOTOR COMPANY

6.

Install the RH bell housing-to-oil pan bolt.

Courtesy of FORD MOTOR COMPANY

7.

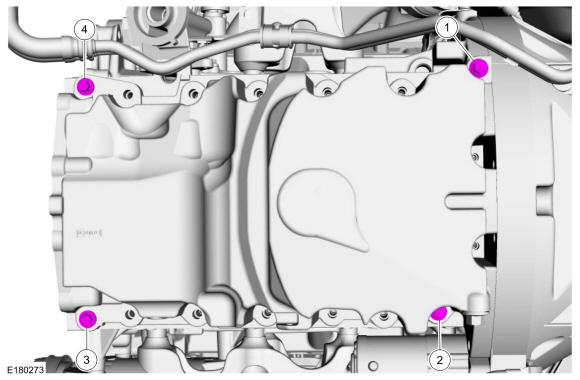

Tighten the pan bolts in sequence.

Fig 1: Oil Pan Tightening Sequence (1 of 2)

Courtesy of FORD MOTOR COMPANY

8.

Install the 4 lower engine front cover bolts.
- Tighten finger-tight.

Courtesy of FORD MOTOR COMPANY

9.

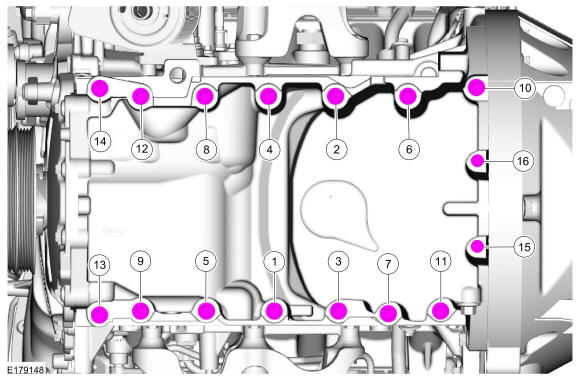

Install the remaining oil pan bolts. Tighten in 3 stages in the sequence shown.
- Stage 1: Tighten bolts 1-9 and 11-14 to 20 Nm (177 lb-in), then rotate an additional 45 degrees.
- Stage 1: Tighten bolts 15 and 16 to 10 Nm (89 lb-in), then rotate an additional 45 degrees.
- Stage 1: Tighten bolt 10 to 20 Nm (177 lb-in), then rotate an additional 90 degrees.

Fig 2: Oil Pan Tightening Sequence (2 of 2)

Courtesy of FORD MOTOR COMPANY

10.

Tighten the 4 lower engine front cover bolts.
- Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

11.

Tighten the LH bell housing-to-engine bolts.
- Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

12.

Tighten the LH bell housing-to-oil pan bolts.
- Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

13.

Tighten the engine-to-bell housing bolt above the starter motor and the bell housing-to-oil pan bolt below the starter motor.
- Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

14.

Tighten the 2 transmission crossmember nuts.
- Tighten to 103 Nm (75 lb-ft).

Courtesy of FORD MOTOR COMPANY

15.

Attach the generator wiring harness retainer to the engine block.

Courtesy of FORD MOTOR COMPANY

Four Wheel Drive(4X4) vehicles

16.

NOTE: Use care when positioning the front axle housing, or the vacuum lines to the axle solenoid may become disconnected or damaged.

Raise the front axle carrier into position.

17.

Install the lower front axle carrier mounting bushing bolt.
- Tighten to 150 Nm (111 lb-ft).

Courtesy of FORD MOTOR COMPANY

18.

Install the axle shaft housing carrier bushing bolt.
- Tighten to 150 Nm (111 lb-ft).

Courtesy of FORD MOTOR COMPANY

19.

Install the upper front axle carrier bushing bolt.
- Tighten to 150 Nm (111 lb-ft).

Courtesy of FORD MOTOR COMPANY

All vehicles

20.

Position the crossmember and install the nuts and bolts.
- Tighten to 90 Nm (66 lb-ft).

Courtesy of FORD MOTOR COMPANY

21.

Attach the generator wiring harness to the engine front cover.

Courtesy of FORD MOTOR COMPANY

22.

Install the transmission cooler line bracket and nut to the engine front cover stud bolt.
- Tighten to 12 Nm (106 lb-in).

Courtesy of FORD MOTOR COMPANY

23.

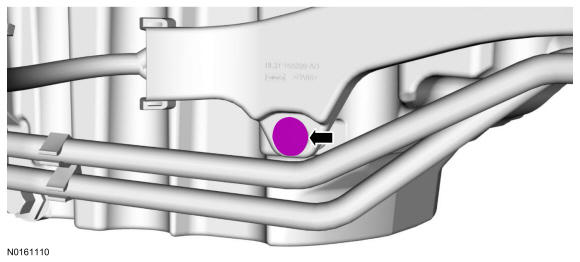

Attach the starter motor wiring harness retainer to the oil pan.

Courtesy of FORD MOTOR COMPANY

24.

Install the starter motor. Refer to: Starting System .

25.

NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.
- Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.

Courtesy of FORD MOTOR COMPANY

26.

Tighten the 4 upper bell housing-to-engine bolts.
- Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

27.

Install the selector lever cable bracket and selector lever cable bracket bolts.
- Tighten to 48 Nm (35 lb-ft).

Courtesy of FORD MOTOR COMPANY

28.

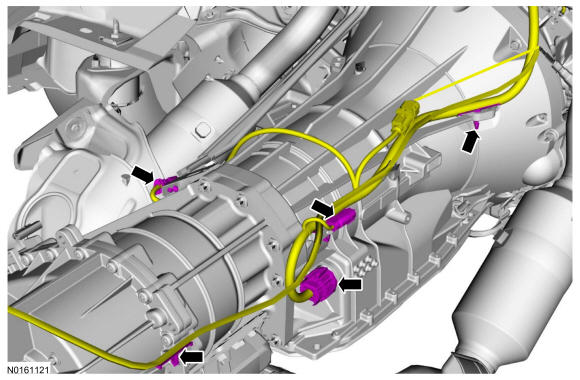

Connect the 2CMS electrical connectors and retainers.
- Connect the transfer case electrical connector harness retainer.
- Connect the transmission harness electrical connector and harness retainers.

Courtesy of FORD MOTOR COMPANY

29.

Connect the transfer case electrical connector.

Courtesy of FORD MOTOR COMPANY

30.

Install the fuel lines in the retainer on the rear of the transmission.

Courtesy of FORD MOTOR COMPANY

31.

Install the fuel lines in the bracket on the upper bell housing.

Courtesy of FORD MOTOR COMPANY

32.

Install the skid plate and the 4 bolts.
- Tighten to 40 Nm (30 lb-ft).

Courtesy of FORD MOTOR COMPANY

33.

If equipped, install the lower air deflector and the 8 pushpins. Turn the 4 quarter-turn retainers.

Courtesy of FORD MOTOR COMPANY

34.

If equipped, install the splash shield and the 4 fasteners.

Courtesy of FORD MOTOR COMPANY

35.

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

36.

Fill the engine with clean engine oil.

Courtesy of FORD MOTOR COMPANY

37.

Connect the battery ground cable. Refer to: Battery, Mounting and Cables .

38.

Adjust the selector lever cable and install the selector lever cable end on the manual control lever. Verify the selector lever cable is correctly adjusted. Refer to: Automatic Transmission External Controls .
