Engine Oil Pressure (EOP) Switch: Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

4x2/4x4

1.

NOTE: If the oil pressure switch is to be reused, apply thread sealant.

Install the EOP switch.
- Tighten to 159 lb.in (18 Nm).

Courtesy of FORD MOTOR COMPANY

2.

Connect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY

4x4

3.

If equipped, connect the block heater electrical connector and wire harness retainer.

Courtesy of FORD MOTOR COMPANY

4.

Install the turbocharger inlet tube and connect the turbocharger inlet tube into the grommet. Tighten the clamp at the turbocharger.

Courtesy of FORD MOTOR COMPANY

5.

Install the LH turbocharger outlet tube.

Courtesy of FORD MOTOR COMPANY

6.

Install the LH turbocharger outlet tube to the CAC.

Courtesy of FORD MOTOR COMPANY

7.

Install the retainers, install the pushpins and the lower air deflector.

Courtesy of FORD MOTOR COMPANY

8.

Connect the quick connect couplings and connect the turbocharger bypass tube. Refer to Fuel System General Information

Courtesy of FORD MOTOR COMPANY

9.
- 1.

  Connect the PCV pressure sensor electrical connector.
- 2.

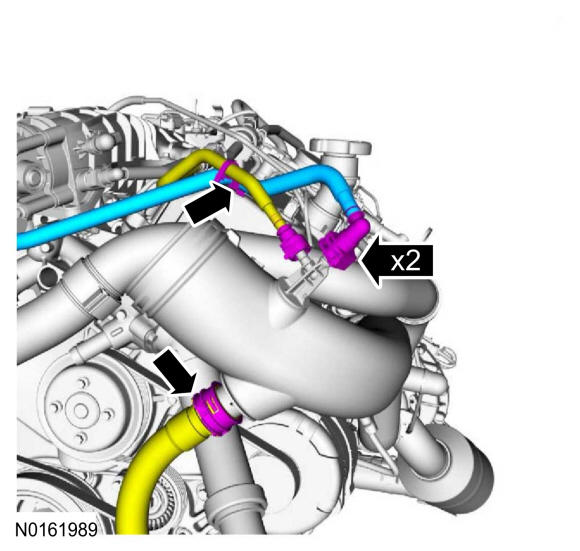

  Connect the PCV tube quick connect couplings. Refer to Fuel System General Information

Courtesy of FORD MOTOR COMPANY

10.

Install the Air Cleaner(ACL) outlet pipe. Refer to Intake Air Distribution and Filtering .

11.

Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

4x2

12.

If equipped, install the skid plate and the bolts.

Courtesy of FORD MOTOR COMPANY

13.

If equipped, install the quarter-turn retainers, attach the pushpins and install the lower air deflector.

Courtesy of FORD MOTOR COMPANY

14.

Install the underbody splash shield and the retainers.

Courtesy of FORD MOTOR COMPANY
