Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

Courtesy of FORD MOTOR COMPANY

2.

Using the Front Crankshaft Seal Installer, install the crankshaft front seal.

Courtesy of FORD MOTOR COMPANY

3.

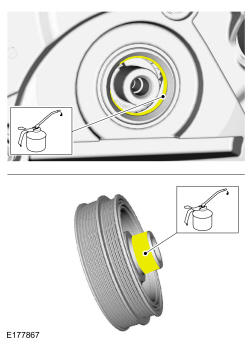

Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.

Courtesy of FORD MOTOR COMPANY

4.

Using the Crankshaft Pulley Installer and the Front Seal Installer, install the crankshaft pulley.

Courtesy of FORD MOTOR COMPANY

5.

With the aid of an assistant, use a strap wrench, install the new crankshaft bolt and the washer and tighten in 4 stages.
- Stage 1: Tighten to 120 Nm (89 lb-ft).
- Stage 2: Loosen one full turn.
- Stage 3: Tighten to 50 Nm (37 lb-ft).
- Stage 4: Tighten an additional 90 degrees.

Courtesy of FORD MOTOR COMPANY

6.

Install the A/C compressor belt. Refer to: Accessory Drive

7.

After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
