In-Vehicle Repair: Camshafts: Removal

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

All camshafts

1.

Remove the Left Hand(LH) or Right Hand(RH) Variable Camshaft Timing(VCT) housing. Refer to: Variable Camshaft Timing (VCT) Housing

LH Camshafts

NOTE: The VCT oil control solenoids are removed for clarity.

2.

Remove the Secondary Chain Hold Down.

GFD135014

Courtesy of FORD MOTOR COMPANY

3.

Remove the Camshaft Holding Tool from the LH camshafts.

GFD135015

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

Remove the bolts, camshaft caps and the camshafts.

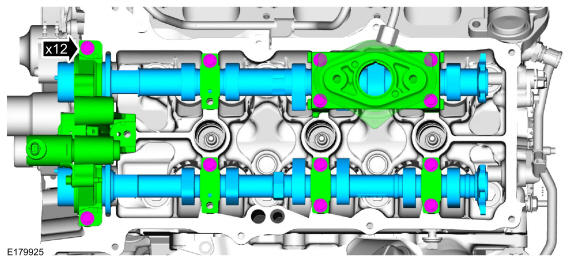

GFD135016

Courtesy of FORD MOTOR COMPANY

RH Camshafts

5.

Remove the brake vacuum pump. Refer to: Power Brake Actuation .

6.

NOTE: The VCT oil control solenoids are removed for clarity.

Remove Special Service Tool: 303-1530.

GFD135017

Courtesy of FORD MOTOR COMPANY

7.

Remove Special Service Tool: 303-1248.

GFD135018

Courtesy of FORD MOTOR COMPANY

8.

Remove the bolts and the camshaft bearing cap.

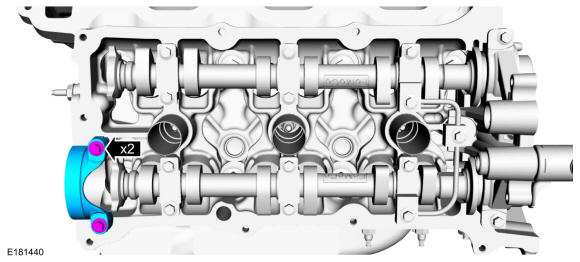

GFD135019

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.

NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

Remove the bolts, camshaft caps and the camshafts.

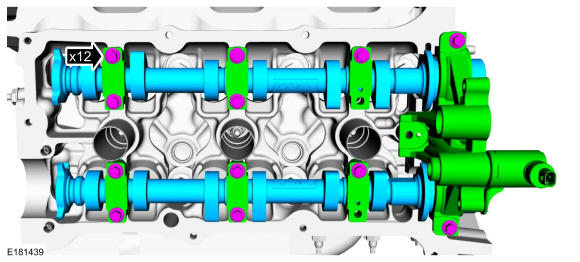

GFD135020

Courtesy of FORD MOTOR COMPANY
