Cylinder Head: Assembly

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

All cylinder heads

1.

Install the valve.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Lubricate the valve stem seal with clean engine oil prior to installation.

Using the valve stem oil seal installer, install the valve stem seal.

Courtesy of FORD MOTOR COMPANY

3.

Using the Valve Spring Compressor, install the valve spring, valve spring retainer and the valve collet.

Courtesy of FORD MOTOR COMPANY

4.

Repeat the previous 3 steps for each valve.

5.

Install the spark plugs. Refer to: Engine Ignition 3.5L GTDI .

6.

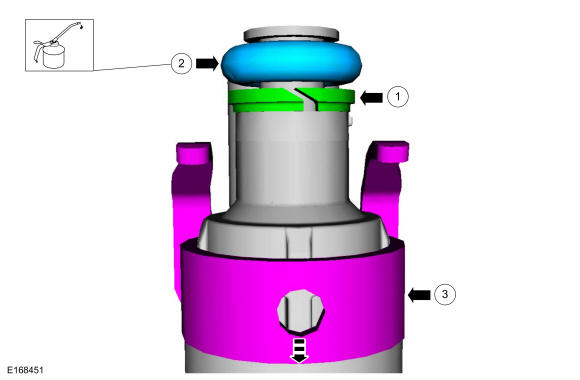

Note the fuel injector seal backup ring orientation for installation.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Do not attempt to cut the lower Teflon ® seal without first pulling it away from the fuel injector or damage to the injector may occur.

NOTE: Use care when removing the lower Teflon ® seals, not to scratch, nick or gouge the fuel injectors.
- 1.

  Pull the lower Teflon ® seal away from the injector.
- 2.

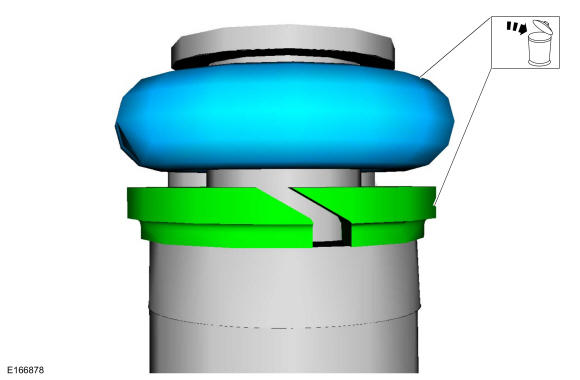

  Carefully cut and discard the lower fuel injector Teflon ® seals.

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.
- 1.

  Use Special Service Tool: 310-207.
- 2.

  NOTE: Once the Teflon ® seal is installed on the Teflon ® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon ® seal.

  NOTE: Make sure that new lower fuel injector Teflon ® seals are installed.
- 3.

  Using the Pusher Tool, slide the Teflon ® seals off of the Teflon ® Seal Guide and into the groove on the fuel injectors.

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Install the fuel injectors into the cylinder head within 15 minutes of sizing the seals due to Teflon ® seal expansion.

NOTE: Make sure the Teflon ® seal is fully seated in the groove on the fuel injector before sizing the Teflon ® seal.
- 1.

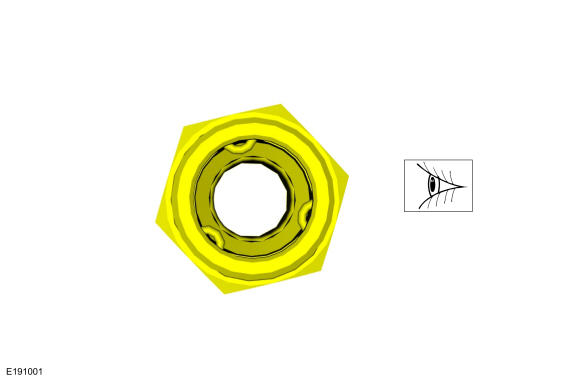

  Some Teflon ® seal massaging with your fingers before the Teflon ® Seal Sizer tool is installed will aid in installing the Teflon ® Seal Sizer tool.
- 2.

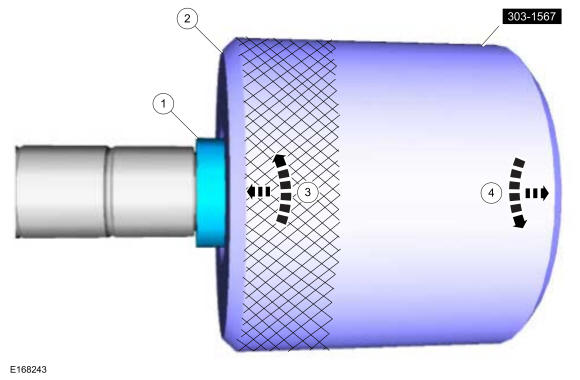

  Position the Teflon ® Seal Sizer tool with the larger opening towards the Teflon ® seal. Push while turning the Teflon ® Seal Sizer tool 180 degrees.
- 3.

  Once the Teflon ® Seal Sizer tool is installed, check and make sure the Teflon ® seal is in the sizing portion of the Teflon ® Seal Sizer tool. After one minute, turn the Teflon ® Seal Sizer tool back 180 degrees and remove.

Courtesy of FORD MOTOR COMPANY

10.
- 1.

  NOTE: The large diameter step of the backup ring must go up towards the new O-ring seal. Improperly installed backup rings may cause the fuel system to leak.
- 2.

  NOTE: Use fuel injector O-ring seals that are made of special fuel-resistant material. The use of ordinary O-ring seals may cause the fuel system to leak. Do not reuse the O-ring seals.

  NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

Courtesy of FORD MOTOR COMPANY

11.

NOTE: RH shown, LH similar.

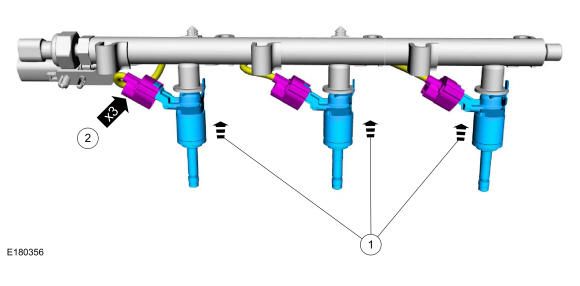

- NOTE: The anti-rotation finger of the fuel injector must slip into the groove of the fuel rail cup.

  Install the fuel injectors into the fuel rail.
- Connect the fuel injector electrical connectors.

Courtesy of FORD MOTOR COMPANY

12.

NOTE: Do not lubricate the new lower Teflon ® fuel injector seals.

NOTE: Make sure that new fuel rail bolts are installed.

NOTE: Push down on the fuel rail above the injectors.

Install the fuel injectors and fuel rail assembly into the cylinder head and install the new bolts.
- Stage 1: Tighten to 71 lb.in (8 Nm)
- Stage 2: Wait 5 sec
- Stage 3: Tighten to 124 lb.in (14 Nm)
- Stage 4: Tighten an additional 30 °

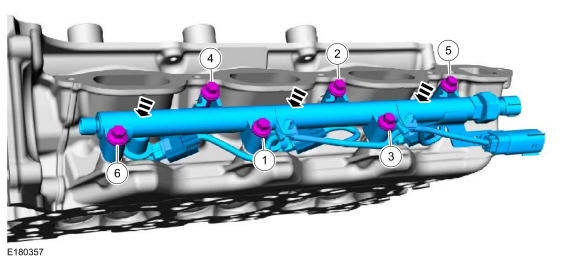

Fig 1: Fuel Rail Tightening Sequence

Courtesy of FORD MOTOR COMPANY

RH cylinder head

13.

Install the timing chain tensioner arm and timing chain guide pins.
- Tighten to 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

14.

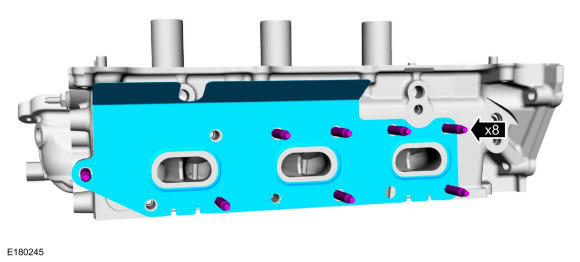

Install the new the studs and the exhaust manifold gasket.
- Tighten to 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

15.

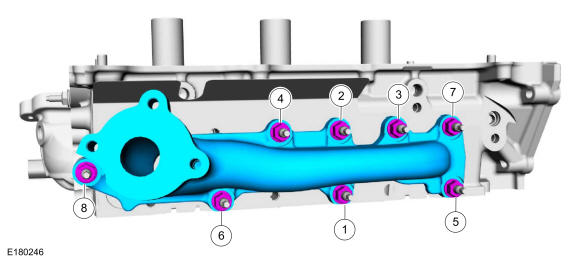

Install the exhaust manifold and the new nuts.
- Stage 1: Tighten to 168 lb.in (19 Nm)
- Stage 2: Tighten to 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

16.
- 1.

  Install the stud bolt.
  - Stage 1: Tighten to 89 lb.in (10 Nm)
  - Stage 2: Tighten an additional 20 °
- 2.

  Install the new CHT sensor.
  - Tighten to 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

17.

Inspect the turbocharger coolant return tube fittings and replace as needed.

Courtesy of FORD MOTOR COMPANY

18.

Install the turbocharger coolant return tube and fitting.
- Tighten to 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

LH cylinder head

19.

Install the timing chain guide pin.
- Tighten to 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

20.

Install the lift eye bracket and the bolts.
- Tighten to 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

21.

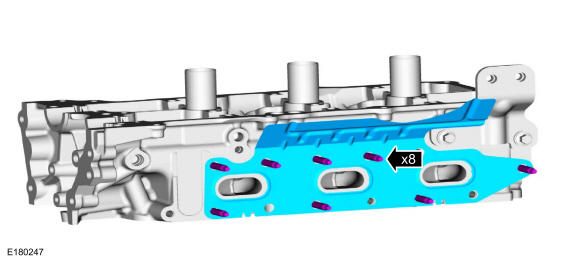

Install the new the studs and the exhaust manifold gasket.
- Tighten to 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

22.

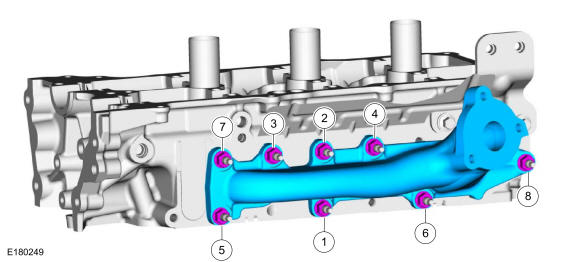

Install the exhaust manifold and the new nuts.
- Stage 1: Tighten to 168 lb.in (19 Nm)
- Stage 2: Tighten to 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

23.

Inspect the turbocharger coolant return tube fittings and replace as needed.

Courtesy of FORD MOTOR COMPANY

24.

Install the turbocharger coolant return tube and fitting.
- Tighten to 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
