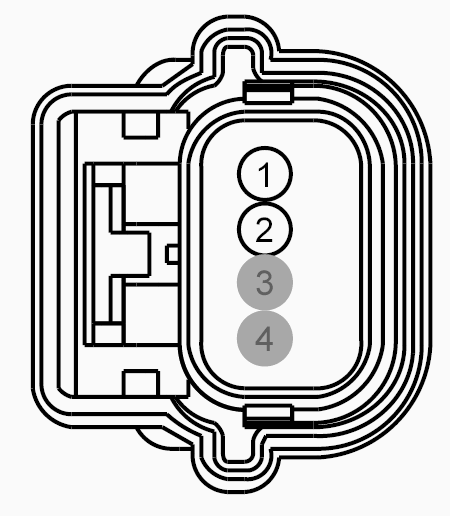

Connector End View C4817 - KEYLESS ENTRY REAR ANTENNA

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C4817

Description

KEYLESS ENTRY REAR ANTENNA

Color

Harness

14A583

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK06 (GY-VT)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) +
2	RPK06 (BU-WH)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) -
3	*	*	Not Used
4	*	*	Not Used

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Antenna - Keyless Entry

Sensor - Brake Pedal Position

Sensor - Clutch Master Cylinder
