Connector End View C4452C - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

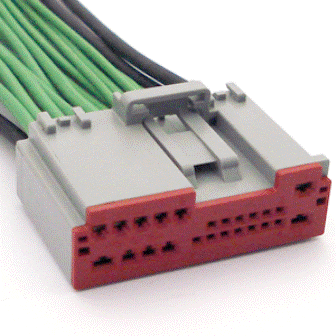

Connector: C4452C
Description
AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
Color
GY
Harness
14014
Base Part #
18B849
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | RME08 (GY-OG) | 20 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER - | |
| 3 | RME39 (GY-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER - | |
| 4 | RME40 (VT-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER - | |
| 5 | RME12 (BN-BU) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) - | |
| 6 | RME09 (BN-YE) | 20 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) - | |
| 7 | RME02 (YE) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 - | |
| 8 | RME01 (GY) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 - | |
| 9 | SBP05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 10 | SBP05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 11 | SBP28 (GN-RD) | 16 | FUSE - 28 OR CIRCUIT BREAKER | |
| 12 | SBP28 (GN-RD) | 16 | FUSE - 28 OR CIRCUIT BREAKER | |
| 13 | * | * | Not Used | |
| 14 | VME08 (GN-OG) | 20 | CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER + | |
| 15 | VME39 (GN-BN) | 18 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR TWEETER + | |
| 16 | VME40 (BU-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR TWEETER + | |
| 17 | VME12 (BN-WH) | 18 | CTRL MOD. - AUDIO # SPEAKER RIGHT REAR (WOOFER) + | |
| 18 | VME09 (WH-GN) | 20 | CTRL MOD. - AUDIO # SPEAKER LEFT REAR (WOOFER) + | |
| 19 | VME02 (VT) | 20 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 + | |
| 20 | VME01 (GN-VT) | 18 | CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 + | |
| 21 | GD349 (BK-GY) | 16 | GROUND - PILLAR D LEFT | |
| 22 | GD349 (BK-GY) | 16 | GROUND - PILLAR D LEFT | |
| 23 | GD349 (BK-GY) | 16 | GROUND - PILLAR D LEFT | |
| 24 | GD349 (BK-GY) | 16 | GROUND - PILLAR D LEFT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1033 |
Service Part Number: 9U2Z-14S411-YA Gauge: 12 14 18 Pin material: Tin & Silver Cavities: 24 Vehicle Uses Module - Driver Door Module - Seat Memory Radio Radio - Amplifier |
