Connector End View C4423 - REAR SIDE MARKER LAMP RH
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

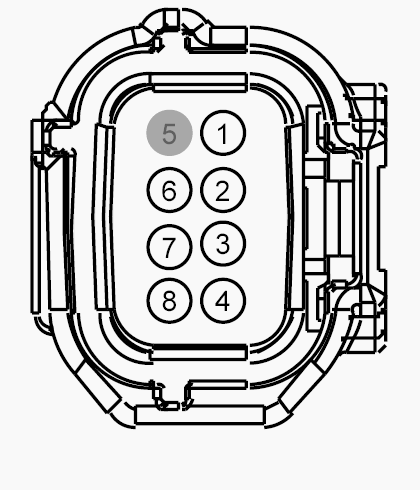

Connector: C4423
Description
REAR SIDE MARKER LAMP RH
Color
Harness
15K868
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD349 (BK-GN) | 20 | GROUND - PILLAR D LEFT | North America |
| 2 | CLS07 (BN-YE) | 20 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | China |
| 2 | CLS05 (BU-GY) | 20 | CTRL MOD. - PARK | |
| 3 | CLS19 (VT-OG) | 20 | CTRL MOD. - STOP/TURN RIGHT (INBOARD) | |
| 4 | CLS24 (BN-WH) | 20 | CTRL MOD. - TURN LAMP RIGHT | China |
| 5 | * | * | Not Used | |
| 6 | CLS54 (BU-OG) | 20 | LAMP - TURN REAR RIGHT # SIGNAL OUT | China |
| 7 | CPL44 (YE-OG) | 20 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | |
| 8 | GD349 (BK-GN) | 20 | GROUND - PILLAR D LEFT | China |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1349 |
Service Part Number: DU2Z-14S411-TA Gauge: 20 Pin material: Tin (greased) Cavities: 8 Vehicle Uses Pump - Fuel Tank Leak Detection |
