Connector End View C4396C - VEHICLE DYNAMICS MODULE (VDM)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C4396C
Description
VEHICLE DYNAMICS MODULE (VDM)
Color
BN
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RCD03 (VT-BN) | 20 | CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT - | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | CCD04 (GY-YE) | 20 | CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT + | |
| 5 | RCD04 (BU-OG) | 20 | CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT - | |
| 6 | CCD03 (WH-BU) | 20 | CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT + | |
| 7 | CBP36 (BU-BN) | 12 | FUSE - 36 OR CIRCUIT BREAKER | |
| 8 | * | * | Not Used | |
| 9 | LCD23 (GN-OG) | 20 | CTRL MOD. - CDC # SENSORS 2 + | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | VCD10 (BN) | 20 | SENSOR - SUSPENSION VERTICAL POSITION FRONT LEFT | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | LCD02 (YE-GN) | 20 | CTRL MOD. - CDC # SENSORS + | |
| 16 | * | * | Not Used | |
| 17 | RCD02 (GN-BN) | 20 | CTRL MOD. - CDC # SENSORS - | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | VCD11 (GY-VT) | 20 | SENSOR - SUSPENSION VERTICAL POSITION FRONT RIGHT | |
| 23 | * | * | Not Used |

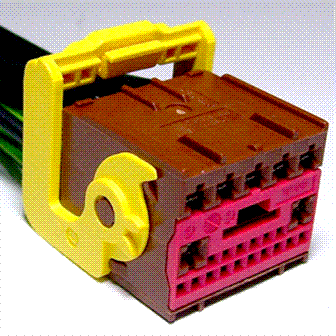

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1454 |
Service Part Number: FU2Z-14S411-AMA Gauge: 14 20 Pin material: Tin & Silver Cavities: 23 Vehicle Uses Module - Remote Functions Actuator Module - Remote Functions Receiver Module - Remote Keyless Entry Valve - Damper |
