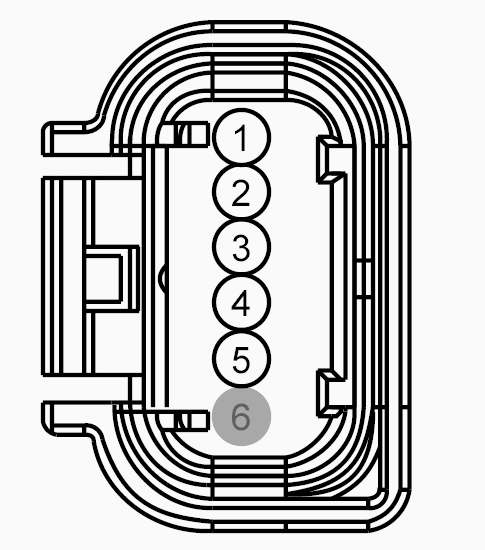

Connector End View C4357 - REAR PARKING AID CAMERA

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C4357

Description

REAR PARKING AID CAMERA

Color

Harness

14A227

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB42 (GN)	20	FUSE - 42 OR CIRCUIT BREAKER
2	VDN04 (VT-WH)	20	CTRL MOD. - LIN BUS # BCM 4
3	RMP19 (BN-VT)	20	CAMERA - PARKING AID REAR VIDEO -
4	VMP19 (WH-GN)	20	CAMERA - PARKING AID REAR VIDEO +
5	DMP19 (GY)	20	CAMERA - PARKING AID REAR VIDEO D
6	*	*	Not Used

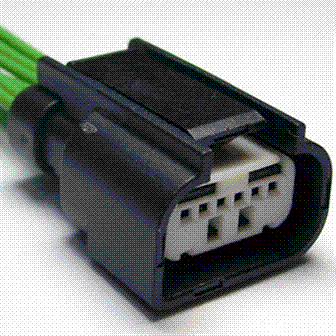

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1280

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Camera - Reverse Park Aid
