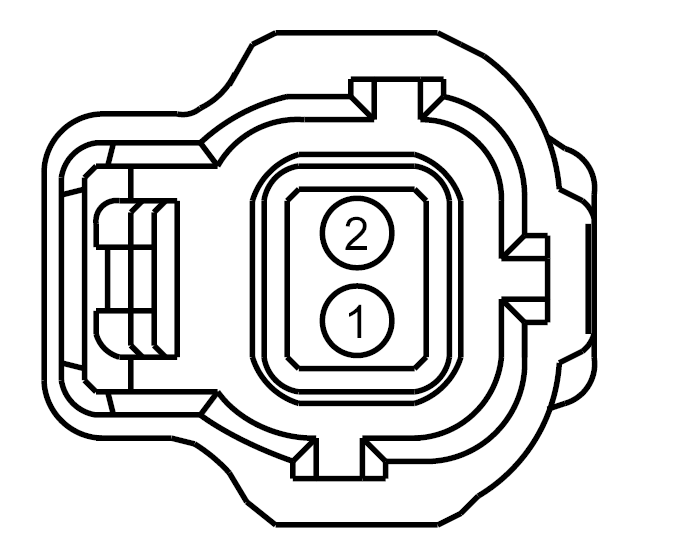

Connector End View C4116 - EVAPORATIVE EMISSION CANISTER VENT VALVE

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C4116

Description

EVAPORATIVE EMISSION CANISTER VENT VALVE

Color

Harness

14014

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB33 (WH-BN)	18	FUSE - 33 OR CIRCUIT BREAKER
2	CE114 (GN-BU)	20	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Resistor - Daytime Running Lamp (DRL)

Sensor - Air Charge Temperature

Sensor - Brake Pressure

Solenoid - Canister Vent

Switch - Brake Pressure
