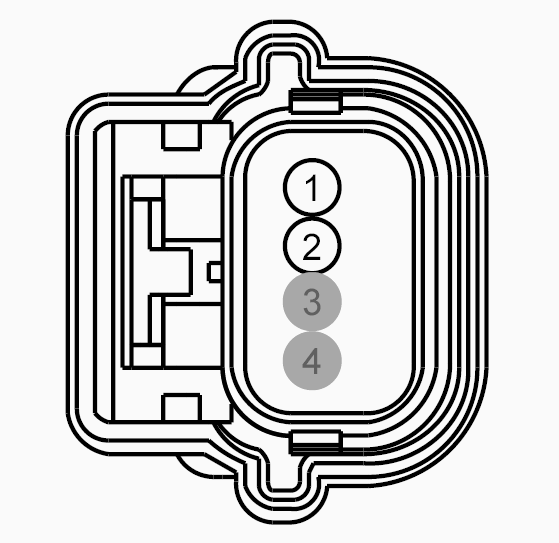

Connector End View C3513 - PASSIVE ANTI-THEFT SYSTEM FRONT ANTENNA

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C3513

Description

PASSIVE ANTI-THEFT SYSTEM FRONT ANTENNA

Color

Harness

14B079

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK05 (BN-GN)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +
2	RPK05 (YE-OG)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) -
3	*	*	Not Used
4	*	*	Not Used

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Antenna - Keyless Entry

Sensor - Brake Pedal Position

Sensor - Clutch Master Cylinder
