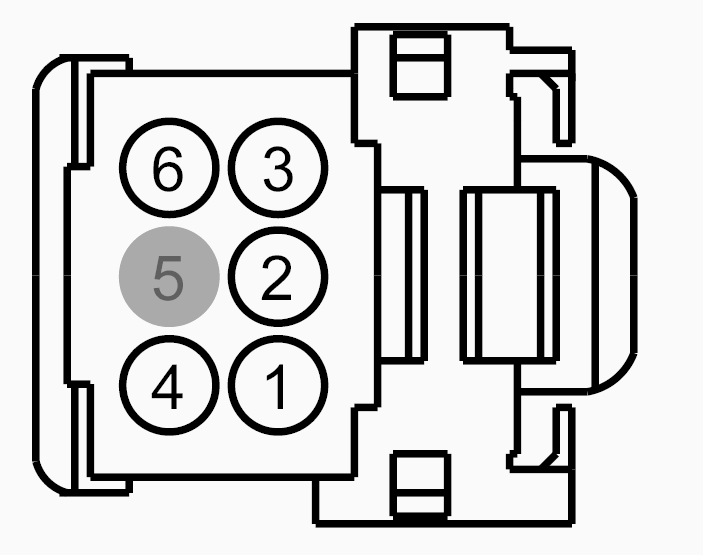

Connector End View C3430 - BRAKESHIFT INTERLOCK OVERDRIVE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3430
Description
BRAKESHIFT INTERLOCK OVERDRIVE
Color
BK
Harness
14B079
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | GD233 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 3 | * | * | Not Used | |
| 4 | CET82 (GN-VT) | 22 | SWITCH - SHIFT-BY-WIRE OVERRIDE 1 (OVERRIDE_SW_1) | |
| 5 | * | * | Not Used | |
| 6 | CET83 (BU-OG) | 22 | SWITCH - SHIFT-BY-WIRE OVERRIDE 2 (OVERRIDE_SW_2) |

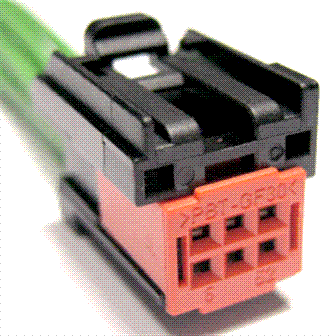

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1164 |
Service Part Number: 8U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid / Hatch Release Switch - Deck Lid / Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control |
