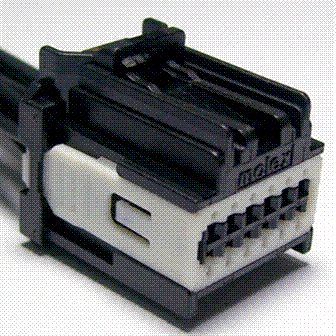

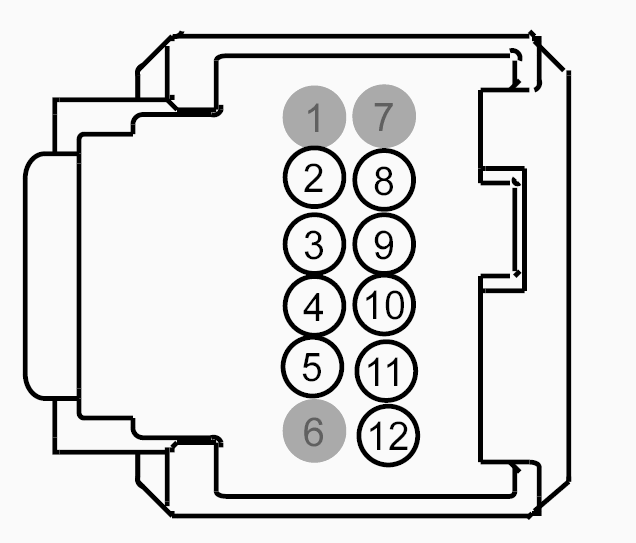

Connector End View C3304A - HEATED SEAT MODULE, REAR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3304A
Description
HEATED SEAT MODULE, REAR
Color
Harness
14A698
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CHS31 (YE-OG) | 22 | SWITCH - SEAT HEATER REAR COMMON OR LEFT | |
| 3 | VHS42 (GN) | 20 | SENSOR - CUSHION TEMP REAR LEFT | |
| 4 | CHS49 (VT) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR LOW | |
| 5 | CHS48 (YE) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR HIGH | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | CHS80 (BU-OG) | 22 | SWITCH - SEAT HEATER REAR RIGHT | |
| 9 | VHS45 (GY-BN) | 20 | SENSOR - CUSHION TEMP REAR RIGHT | |
| 10 | CHS53 (WH-BN) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR LOW | |
| 11 | CHS52 (BU) | 22 | CTRL MOD. - HOT/COLD SEAT # REAR RIGHT INDICATOR HIGH | |
| 12 | RHS41 (GN-BN) | 20 | CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1401 |
Service Part Number: EU2Z-14S411-SA Gauge: 20 Pin material: Tin Cavities: 12 Vehicle Uses Module - Climate Control Seat Module - Heated Seat (Rear) Module - Image Processing Module - Media Gateway Module - Power Steering Monitor - Video/DVD |
