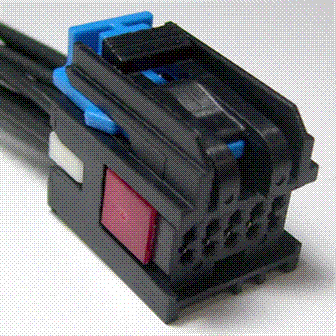

Connector End View C3265B - FRONT SEAT CLIMATE CONTROL MODULE (SCME)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3265B
Description
FRONT SEAT CLIMATE CONTROL MODULE (SCME)
Color
BK
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | VHS27 (WH-OG) | 20 | SENSOR - CUSHION TEMP. PASSENGER | |
| 3 | RHS10 (BU-OG) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. | |
| 4 | VHS36 (YE-BU) | 20 | SENSOR - BACK TEMP. PASSENGER | |
| 5 | RHS20 (GN-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP. | |
| 6 | * | * | Not Used | |
| 7 | VHS26 (VT) | 20 | SENSOR - CUSHION TEMP. DRIVER | |
| 8 | RHS05 (YE-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. | |
| 9 | CHS14 (GN) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH | |
| 10 | CHS29 (WH-BU) | 20 | SWITCH - SEAT HEATER FRONT DRIVER SIDE |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1174 |
Service Part Number: AU2Z-14S411-BLA Gauge: 20 Pin material: Tin Cavities: 10 Vehicle Uses Module - Climate Control Seat |
