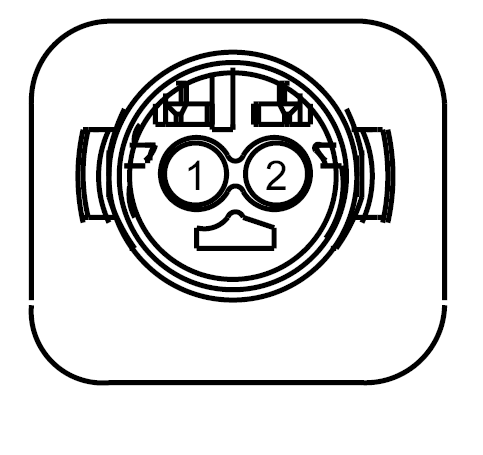

Connector End View C3202 - SAFETY BELT LOAD LIMITING RETRACTOR, PASSENGER
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3202
Description
SAFETY BELT LOAD LIMITING RETRACTOR, PASSENGER
Color
Harness
14014
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR147 (GN-OG) | 20 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD + | |
| 2 | RR147 (YE-VT) | 20 | CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD - |
| Available Pigtail Kits | |

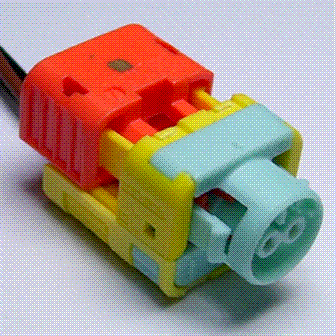

| Pigtail Kit Part Number WPT-1221 |
Service Part Number: BU2Z-14S411-BDA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Squib - Airbag (Passenger) |
