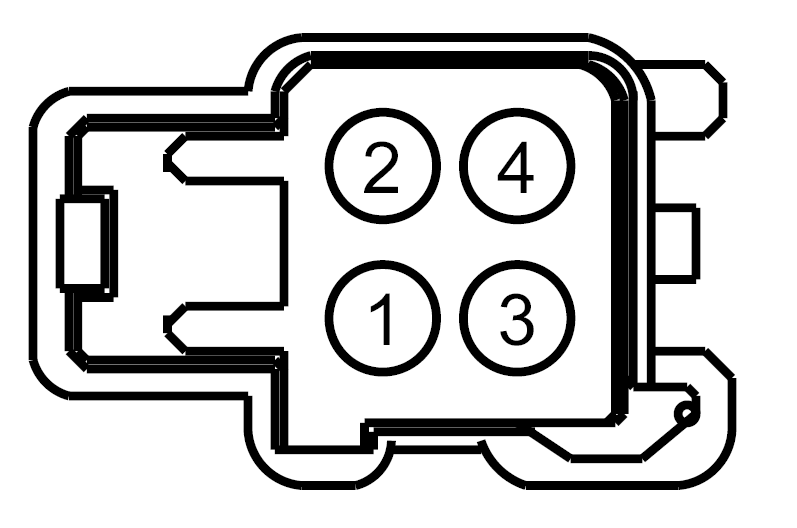

Connector End View C3167 - SEAT CUSHION HEATER MAT, LEFT REAR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3167
Description
SEAT CUSHION HEATER MAT, LEFT REAR
Color
GY
Harness
14A698
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS58 (WH) | 16 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER + | |
| 2 | VHS42 (GN) | 20 | SENSOR - CUSHION TEMP REAR LEFT | |
| 3 | RHS41 (GN-BN) | 20 | CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP | |
| 4 | CHS74 (WH-OG) | 16 | HEATER - SEAT REAR LEFT CUSHION/BACK |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1076 |
Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top |
