Connector End View C3049 - INLINE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
InlineC3049
Description
INLINE
Color
YE
Base Part #
Service Pigtail
See Below
MALE
Harness 14D230
FEMALE
Harness 14D233
| Pin | Circuit | Gauge | Qualifier |
| 1 | CR106 (VT-GY) | 20 | 14D230 |
| 1 | CR106 (YE-OG) | 20 | 14D233 |
| 2 | RR106 (VT-GY) | 20 | 14D233 |
| 2 | RR106 (YE-OG) | 20 | 14D230 |
| Available Pigtail Kits | |

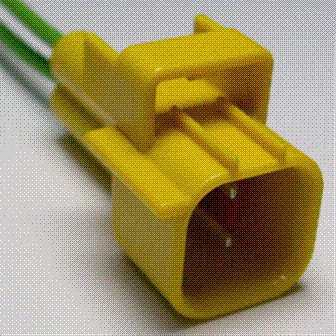

| Pigtail Kit Part Number WPT-1244 |
Service Part Number: AU2Z-14S411-BMA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses: Pretensioner - Seat Belt (Passenger) |

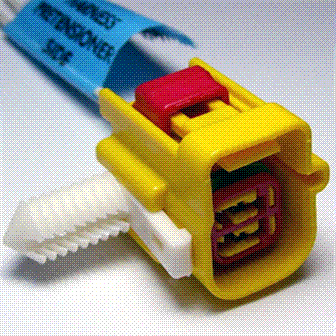

| Pigtail Kit Part Number WPT-1172 |
Service Part Number: 8U2Z-14S411-ABB Gauge: 20 Pin material: Gold Cavities: 2 Vehicle Uses: Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) |
