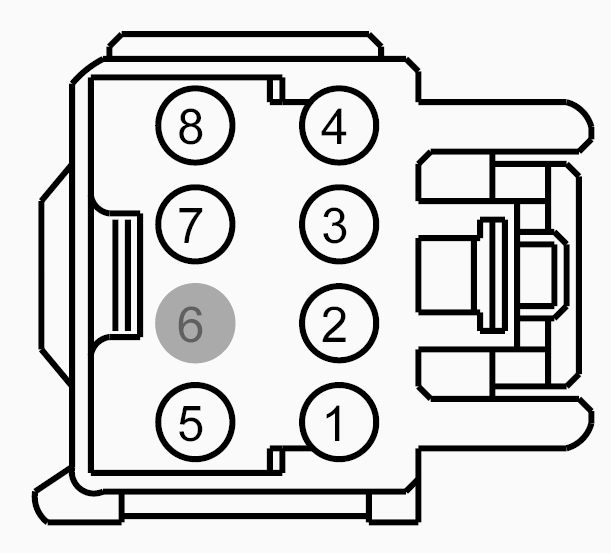

Connector End View C3039 - SEAT BACKREST BLOWER MOTOR, PASSENGER SIDE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

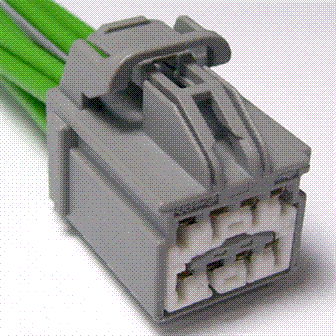

Connector: C3039
Description
SEAT BACKREST BLOWER MOTOR, PASSENGER SIDE
Color
LT GY
Harness
14D233
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS06 (BU-BN) | 14 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | |
| 2 | RHS06 (WH) | 14 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER - | |
| 3 | CHS08 (BN-YE) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN + | |
| 4 | RHS08 (VT-WH) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN - | |
| 5 | VHS36 (YE-BU) | 20 | SENSOR - BACK TEMP. PASSENGER | |
| 6 | * | * | Not Used | |
| 7 | VHS21 (BU-WH) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL | |
| 8 | RHS20 (GN-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP. |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1128 |
Service Part Number: 3U2Z-14S411-BCB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Mirror - Sideview Solenoid - Brake Shift Park Interlock Switch - Headlamp Switch - Power Window - Quarter Glass Switch - Sliding Door Contact |
