Connector End View C3035 - SEAT CUSHION BLOWER MOTOR, DRIVER SIDE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

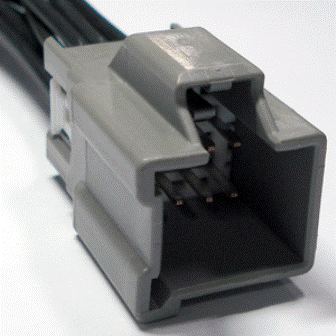

Connector: C3035
Description
SEAT CUSHION BLOWER MOTOR, DRIVER SIDE
Color
GY
Harness
14D231
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

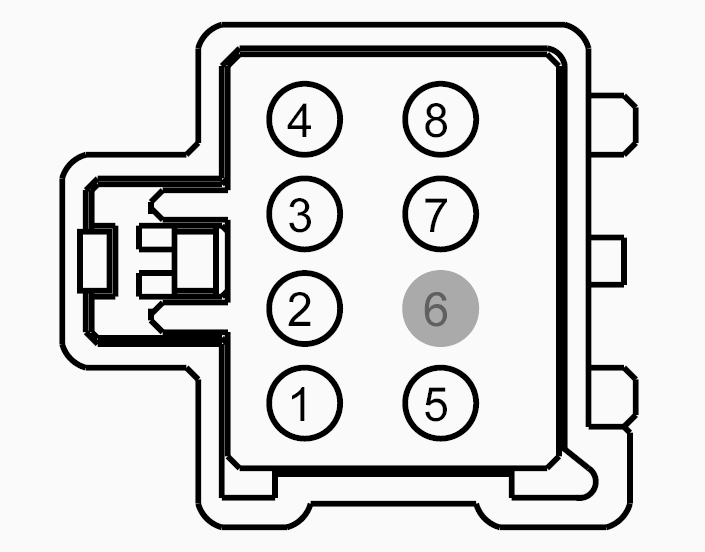

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS02 (YE-BU) | 14 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + | |
| 2 | RHS02 (BU-OG) | 14 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER - | |
| 3 | CHS03 (GN-BN) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN + | |
| 4 | RHS03 (GY-OG) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN - | |
| 5 | VHS26 (VT) | 20 | SENSOR - CUSHION TEMP. DRIVER | |
| 6 | * | * | Not Used | |
| 7 | VHS18 (BN-GN) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION BLOWER SPEED CONTROL | |
| 8 | RHS05 (YE-VT) | 20 | CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1034 |
Service Part Number: 3U2Z-14S411-ZTB Gauge: 14 Pin material: Tin Cavities: 8 Vehicle Uses Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) |
