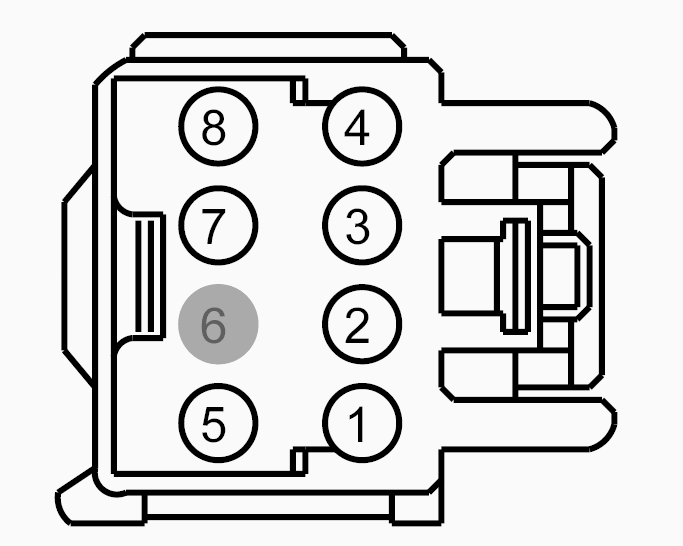

Connector End View C3034 - SEAT BACKREST BLOWER MOTOR, DRIVER SIDE
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3034
Description
SEAT BACKREST BLOWER MOTOR, DRIVER SIDE
Color
LT GY
Harness
14D232
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHS01 (GY-VT) | 14 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER + | |
| 2 | RHS01 (WH-VT) | 14 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER - | |
| 3 | CHS03 (GN-BN) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN + | |
| 4 | RHS03 (GY-OG) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN - | |
| 5 | CHS14 (GN) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR HIGH | |
| 6 | * | * | Not Used | |
| 7 | CHS09 (GY) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER INDICATOR LOW | |
| 8 | CHS29 (WH-BU) | 20 | SWITCH - SEAT HEATER FRONT DRIVER SIDE |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1128 |
Service Part Number: 3U2Z-14S411-BCB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Mirror - Sideview Solenoid - Brake Shift Park Interlock Switch - Headlamp Switch - Power Window - Quarter Glass Switch - Sliding Door Contact |
