Connector End View C2469 - INSTRUMENT PANEL SPEAKER, RIGHT

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2469

Description

INSTRUMENT PANEL SPEAKER, RIGHT

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME29 (GN-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP +
2	RME29 (BU-WH)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT IP -
3	VME11 (VT-OG)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER +
4	RME11 (YE-OG)	20	CTRL MOD. - AUDIO # SPEAKER RIGHT FRONT TWEETER -

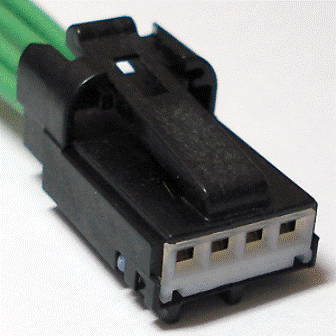

Available Pigtail Kits

Pigtail Kit Part Number

WPT-982

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-JB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Module - Auto Lamps

Module - Front Interface

Sensor - EATC In Car Temperature

Sensor - Sunload

Solenoid - Brake Shift Park Interlock

Switch - Door Lock (LH)

Switch - Door Lock (RH)
