Connector End View C2438 - DRIVER SIDE CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2438
Description
DRIVER SIDE CENTER REGISTER AIR DISCHARGE TEMPERATURE SENSOR
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VH409 (WH) | 20 | SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL) | |
| 2 | * | * | Not Used | |
| 3 | RH111 (GY-BU) | 20 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-911 |

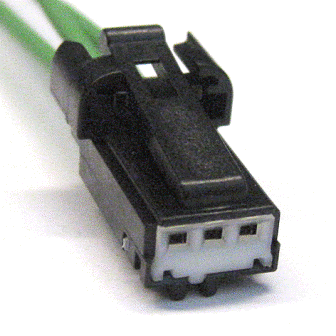

Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer |
