Connector End View C2406 - HEATED STEERING WHEEL MODULE (HSWM)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2406
Description
HEATED STEERING WHEEL MODULE (HSWM)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP37 (WH) | 14 | FUSE - 37 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | VDB07 (VT-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 4 | VDB06 (GY-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 5 | VHS81 (GN-WH) | 20 | THERMISTOR - HEATED STEERING WHEEL + | |
| 6 | * | * | Not Used | |
| 7 | RHS72 (YE-GY) | 18 | CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT - | |
| 8 | CHS72 (YE-BU) | 18 | CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT + | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | RHS81 (VT-WH) | 20 | THERMISTOR - HEATED STEERING WHEEL - | |
| 13 | * | * | Not Used | |
| 14 | GD234 (BK-VT) | 16 | GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT |

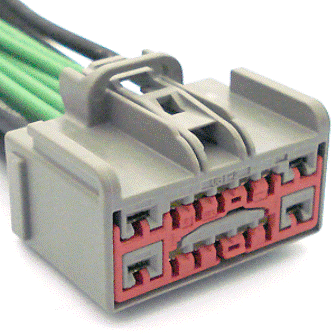

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-955 |
Service Part Number: 3U2Z-14S411-BJAC Gauge: 12 14 16 Pin material: Tin & Silver Cavities: 14 Vehicle Uses Connector - Inline |
