Connector End View C2367 - STEERING WHEEL SWITCH, RH LOWER
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2367
Description
STEERING WHEEL SWITCH, RH LOWER
Color
BK
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RRH02 (*) | * | ILLUMINATION GROUND | |
| 2 | LX103 (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3 | |
| 3 | LX104 (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4 | |
| 4 | RX102 (*) | * | SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT) | |
| 5 | LX106 (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2 | |
| 6 | VLN04 (*) | * | ILLUMINATION FEED |
| Available Pigtail Kits | |

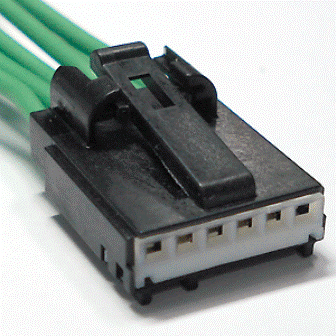

| Pigtail Kit Part Number WPT-1006 |
Service Part Number: 7U2Z-14S411-NB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front) |
