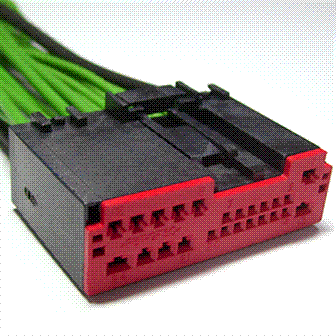

Connector End View C2129 - HEADLAMP CONTROL MODULE (HCM)
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2129
Description
HEADLAMP CONTROL MODULE (HCM)
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | GD233 (BK) | 18 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 8 | * | * | Not Used | |
| 9 | DLF32 (BARE) | 22 | CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) D | |
| 10 | VLF32 (YE) | 20 | CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT LEFT (LIN BUS) + | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 20 | * | * | Not Used | |
| 21 | VLF33 (BU) | 20 | CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) + | |
| 22 | DLF33 (BARE) | 22 | CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT (LIN BUS) D | |
| 23 | * | * | Not Used | |
| 24 | CBP20 (YE-VT) | 18 | FUSE - 20 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1126 |
Service Part Number: AU2Z-14S411-ATA Gauge: 12 16 18 Pin material: Tin & Silver Cavities: 24 Vehicle Uses Module - Driver Door Module - Seat Memory Module - Tire Pressure |
