Connector End View C2091 - DRIVER SIDE TEMPERATURE DOOR ACTUATOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2091
Description
DRIVER SIDE TEMPERATURE DOOR ACTUATOR
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CH238 (YE-OG) | 20 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) | |
| 2 | CH237 (VT-GY) | 20 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COMMON | |
| 3 | CH239 (BU-WH) | 20 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) | |
| 4 | CH240 (GN-WH) | 20 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 3 | |
| 5 | * | * | Not Used | |
| 6 | CH241 (GY-BN) | 20 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 4 |

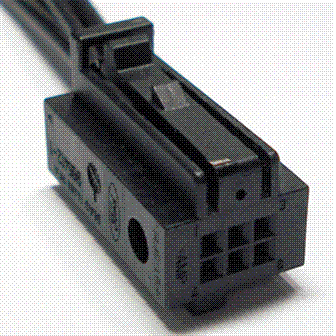

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1060 |
Service Part Number: 3U2Z-14S411-HDB Gauge: 18 Pin material: Tin (greased) Cavities: 6 Vehicle Uses Clock Switch - Deck Lid / Hatch Release Switch - Message Center Switch - Moon Roof/Sun Roof |
