Connector End View C2015 - PARKING BRAKE SWITCH
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

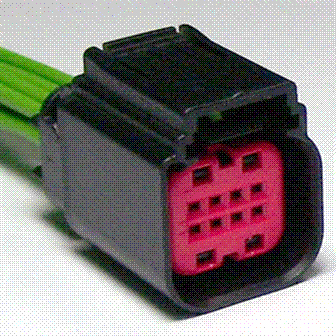

Connector: C2015
Description
PARKING BRAKE SWITCH
Color
BK
Harness
14401
Base Part #
15A851
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VLN04 (VT-GY) | 20 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 2 | GD233 (BK) | 20 | GROUND - COWL SIDE/PILLAR A LEFT | |
| 3 | CCB25 (BN) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6 | |
| 4 | CCB22 (WH-BN) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3 | |
| 5 | CCB24 (WH-OG) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5 | |
| 6 | CCB23 (VT-GN) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4 | |
| 7 | CCB21 (GN-VT) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2 | |
| 8 | CCB20 (BU-WH) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1198 |
Service Part Number: 4U2Z-14S411-LC Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Module - Remote Keyless Entry Switch - Keyless Entry |
