Connector End View C1759B - HEADLAMP ASSEMBLY RH
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1759B
Description
HEADLAMP ASSEMBLY RH
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 2 | * | * | Not Used | |
| 3 | CLS25 (YE-VT) | 20 | CTRL MOD. - TURN LAMP RIGHT FRONT |

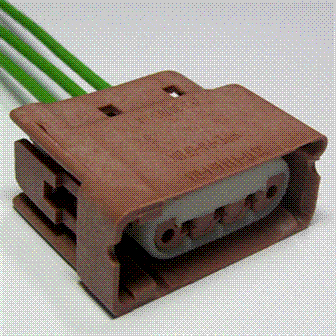

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1167 |
Service Part Number: 3U2Z-14S411-FHAB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Lamp - Front Cornering/Turn Lamp - Front Park Lamp - Front Turn Lamp - Front Turn/ Marker Lamp - Headlamp - High/Low Beam Lamp - Park/Turn Lamp - Park/Turn/Stop Lamp - Rear Park Lamp - Reverse Lamp - Stop |
