Connector End View C1717 - TRANSMISSION FLUID PUMP
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

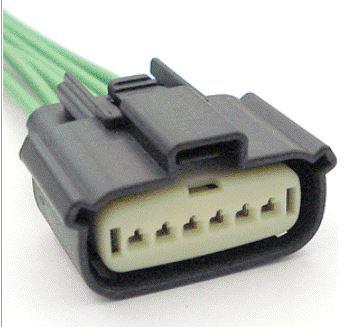

Connector: C1717
Description
TRANSMISSION FLUID PUMP
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers

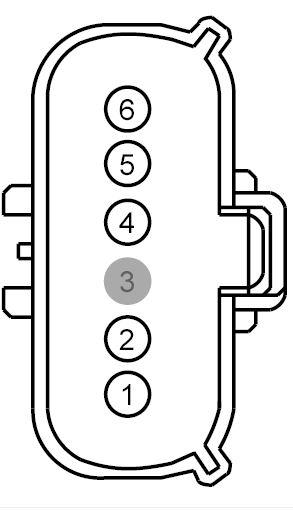

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBB14 (BN-RD) | 16 | FUSE - 14 OR CIRCUIT BREAKER | |
| 2 | CBB26 (BU-WH) | 18 | FUSE - 26 OR CIRCUIT BREAKER | |
| 3 | * | * | Not Used | |
| 4 | RET173 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN TRANS FLUID PUMP CONTROL | |
| 5 | CE174 (YE-GY) | 18 | CTRL MOD. - POWERTRAIN # ELECTRIC WATER PUMP RELAY | |
| 6 | GD108 (BK-VT) | 16 | Ground |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-944 |
Service Part Number: 9U2Z-14S411-NA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline |
