Connector End View C1691 - FUEL PRESSURE SENSOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1691
Description
FUEL PRESSURE SENSOR
Color
LT GY
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE727 (BU-BN) | 18 | SENSOR - FUEL LOW PRESSURE (FLP) | |
| 2 | RE230 (WH-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN) | |
| 3 | LE424 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1308 |

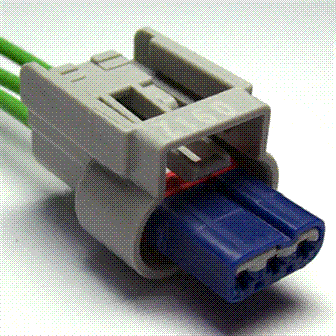

Service Part Number: CU2Z-14S411-AVA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Coil - Ignition Sensor - Fuel Low Pressure |
