Connector End View C1669 - FRONT SHOCK ABSORBER RH

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1669

Description

FRONT SHOCK ABSORBER RH

Color

Harness

14K733

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD04 (GY-YE)	20	CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT +
2	RCD04 (BU-OG)	20	CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT -

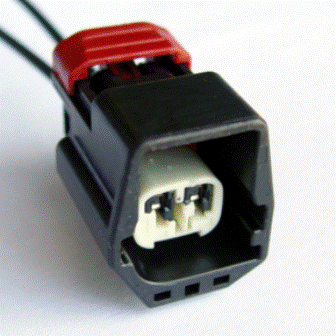

Available Pigtail Kits

Pigtail Kit Part Number

WPT-273

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-GVA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses

Sensor - Ambient Temp

Sensor - Heated Thermostat
