Connector End View C1653 - CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)

WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C1653

Description

CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)

Color

Harness

12C508

Base Part #

6B288

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF)
2	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)
3	VE706 (BN-BU)	20	CAMSHAFT POSITION BANK 1 SENSOR 1 (CMP11)

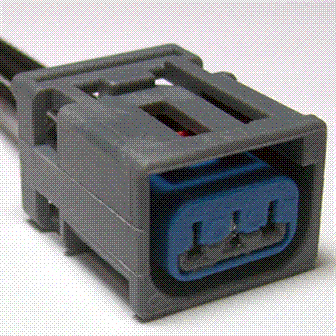

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1205

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-KMB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Delta Pressure Feedback EGR

Sensor - Fuel Tank Pressure Transducer
