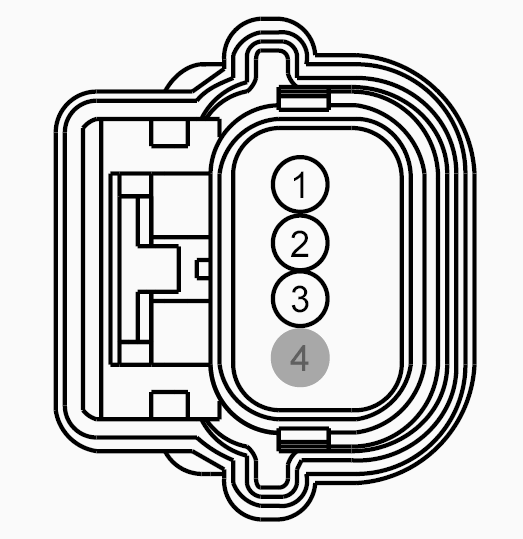

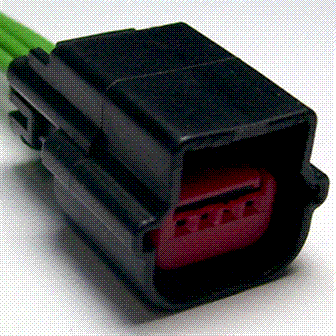

Connector End View C1651 - ACTIVE GRILLE SHUTTER
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1651
Description
ACTIVE GRILLE SHUTTER
Color
Harness
14K733
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
| 2 | VDN06 (WH-GN) | 20 | CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 [REPLACED BY VE181] | |
| 3 | CBB34 (VT-BN) | 18 | FUSE - 34 OR CIRCUIT BREAKER | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1307 |
Service Part Number: CU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder |
