Connector End View C1645 - GENERATOR CURRENT SENSOR
WARNING: This page is about a different car, the 2018 Lincoln MKC. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C1645
Description

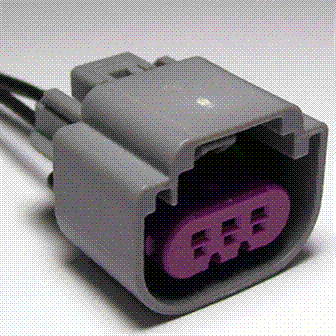

GENERATOR CURRENT SENSOR
Color
GY
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LE424 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) | |
| 2 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | |
| 3 | VDC61 (VT-GN) | 18 | SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1413 |
Service Part Number: EU2Z-14S411-UA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Battery Current Sensor - Brake Vacuum Sensor - Fuel Tank Pressure Transducer |
